Capri ADCS & ADCC - Cable glands for flexible & rigid conduits
The ADCC and ADCS is a widely approved cable gland for use connecting a cable and conduit system. With a range of materials and male and female thread options to cover all requirements.
The ADCC is a fixed connection the ADCS incorporates a swivel design to allow for use with long rigid conduit runs. Should be used in conjunction with appropriate termination for flexible conduits.
Available as gland only or in pre-packed kit form for ease of ordering. Refer to our ADE Gland Accessories for further matching accessories.
Protection Type
Flameproof Ex db,
Increased Safety Ex eb,
Restricted Breathing Ex nR,
Dust Ex tb
Area Classification
Zones 1 and 2, Groups I, IIA, IIB and IIC
Zones 21 and 22, Groups IIIA, IIIB and IIIC
Cable types
Protection category
Other certificates: Inmetro, CCoE, EAC, KOSHA, & NEPSI
Shipping applications: ABS, DNV, BV & Lloyds
How to install ADCC and ADCS cable glands with rigid or flexible conduit

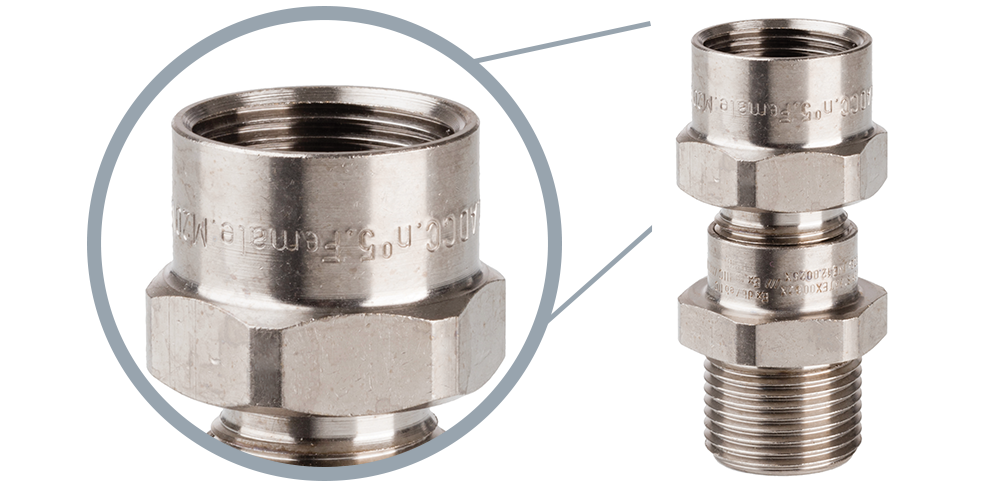

ADCC: threaded junction for rigid or flexible conduit
Provide female thread for conduit connection which includes a non-armoured cable run.

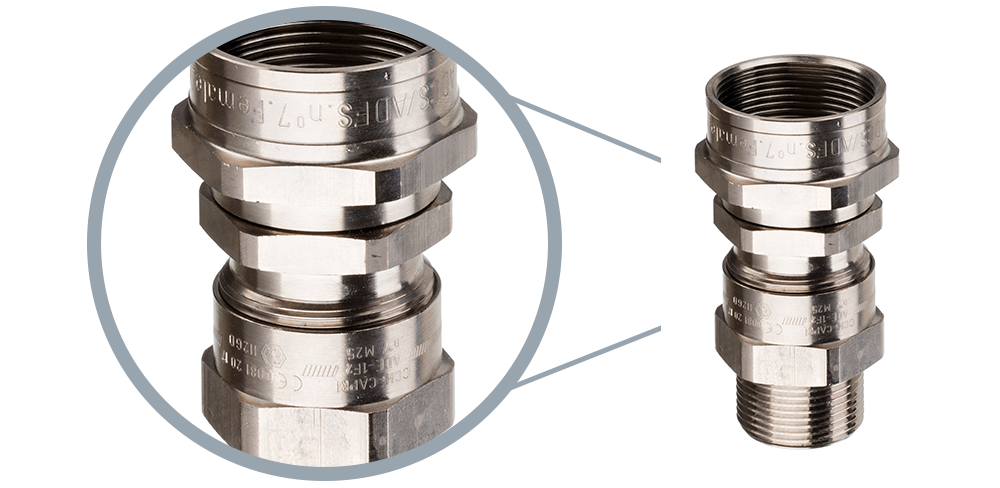

ADCS: swivel connection to rigid conduit
Provide female thread for rigid conduit connection and independent union for installation ease. Multiple female thread options available for rigid conduit.
Designed and certified for use in the most severe environments
The Capri ADCC and ADCS are the best solutions for extreme operating temperatures from -60°C to +140°C. The seal material on Eaton's Capri series of cable glands has been carefully formulated to achieve optimal performance. Rated to IP66 and IP68 the Capri ADCC and ADCS are dust-tight and can withstand being completely submerged in water continuously.
Features of the Capri 1F2 ADCC

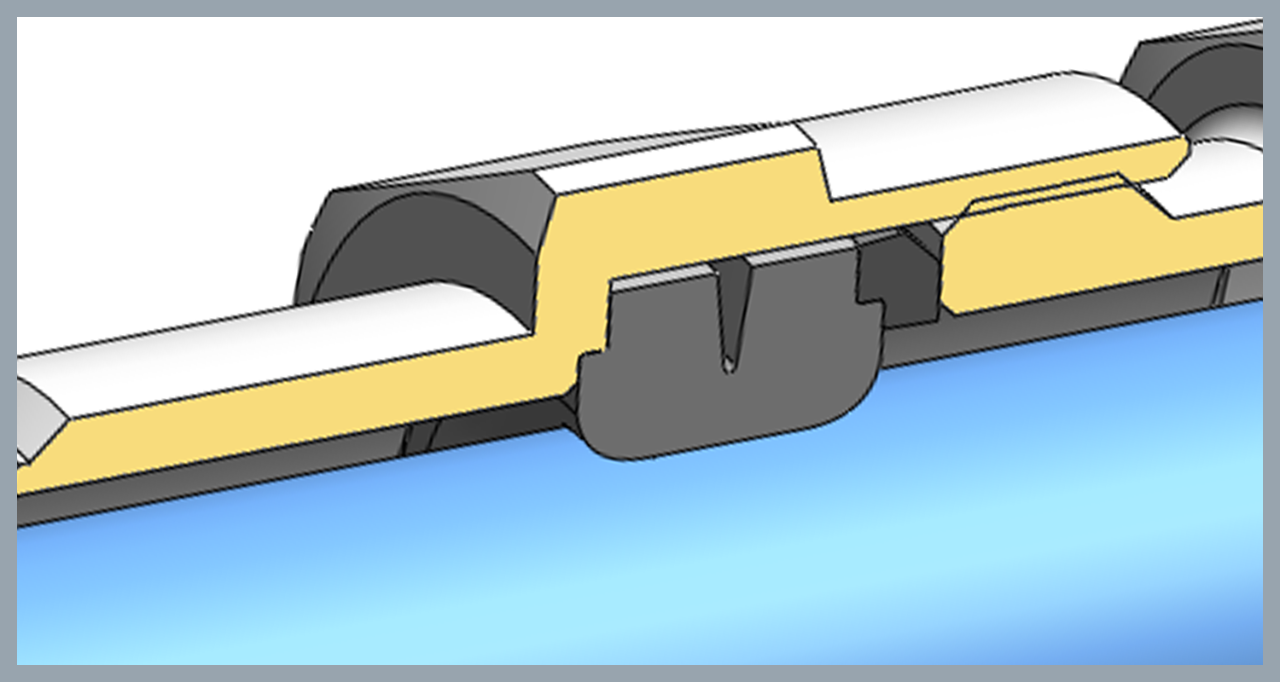

1. Specifically formulated flameproof elastomer for IP sealing on outer sheath of cable.
2. Female thread for flexible or rigid conduit - multiple female thread options available.

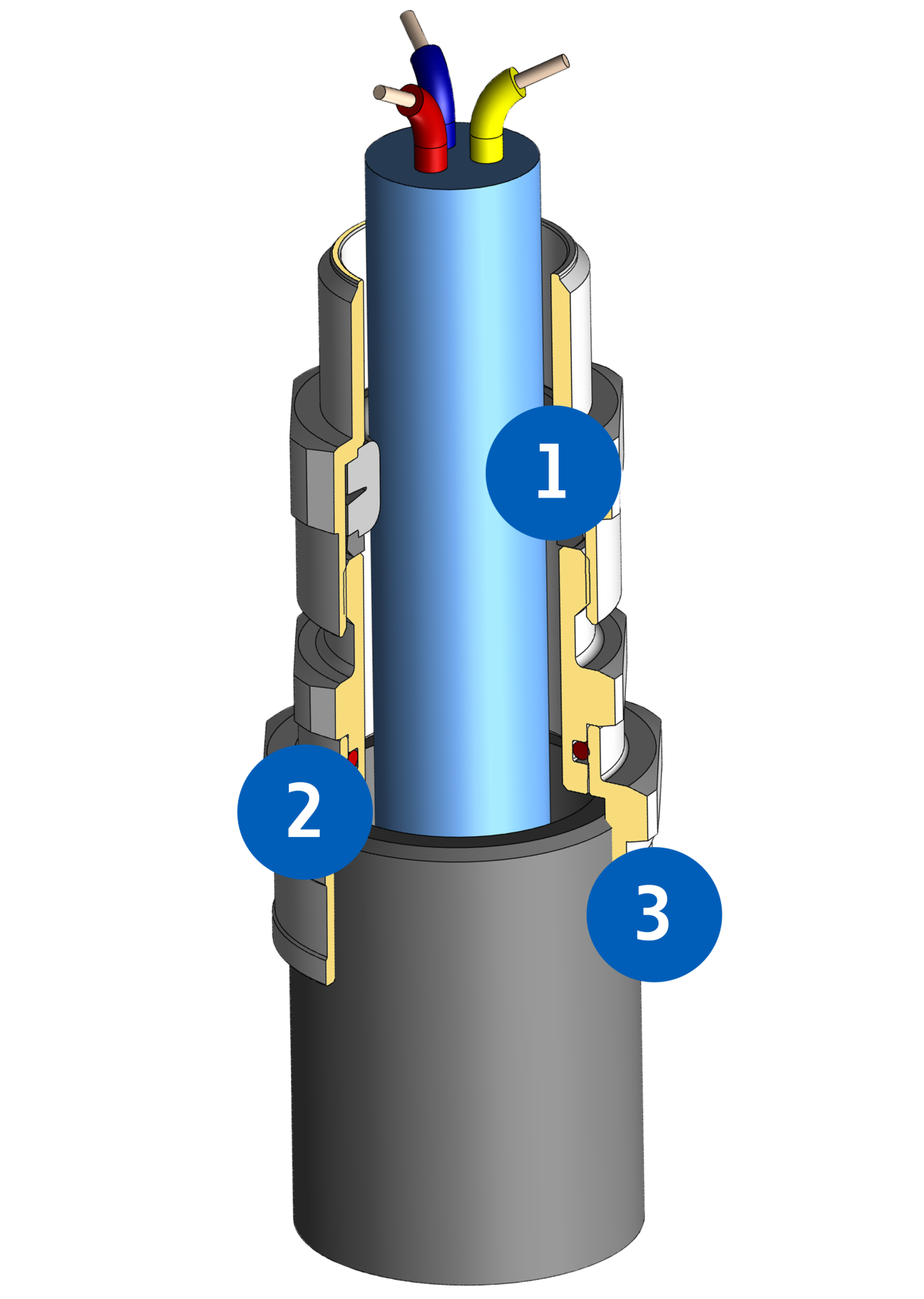

Features of the Capri 1F2 ADCS

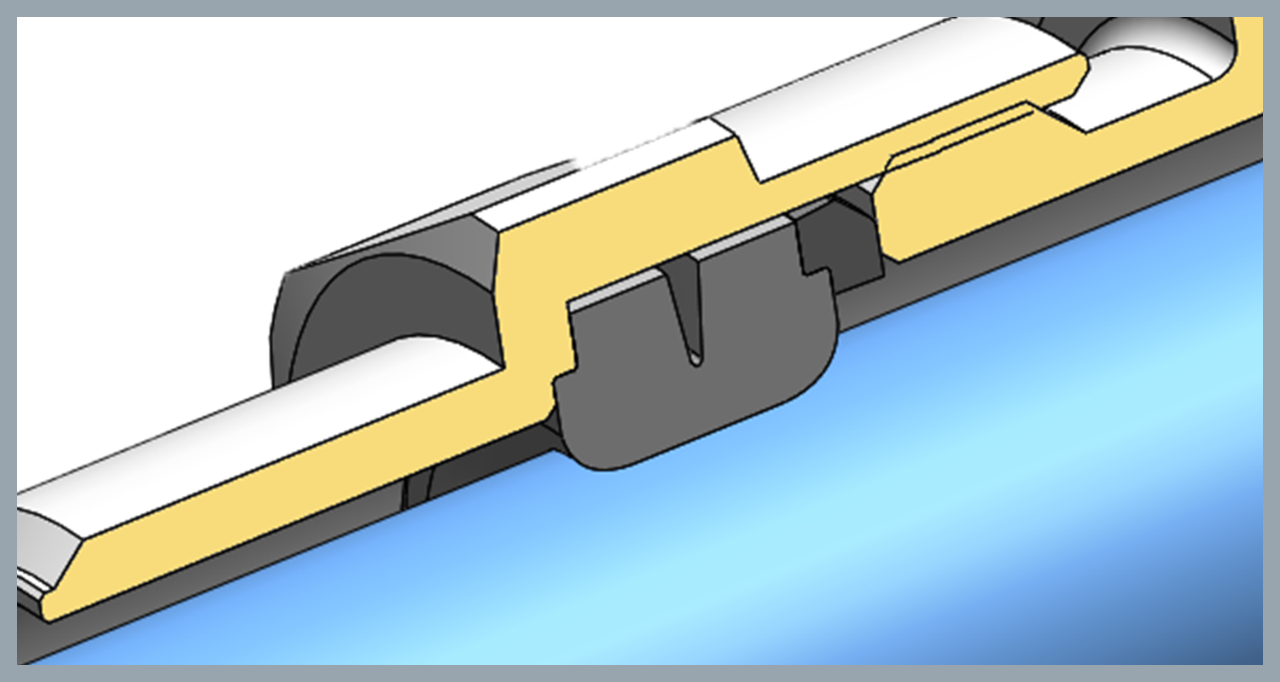

1. Specifically formulated flameproof elastomer for IP sealing on outer sheath of cable.
2. Swivel connection providing easy installation for rigid conduit.

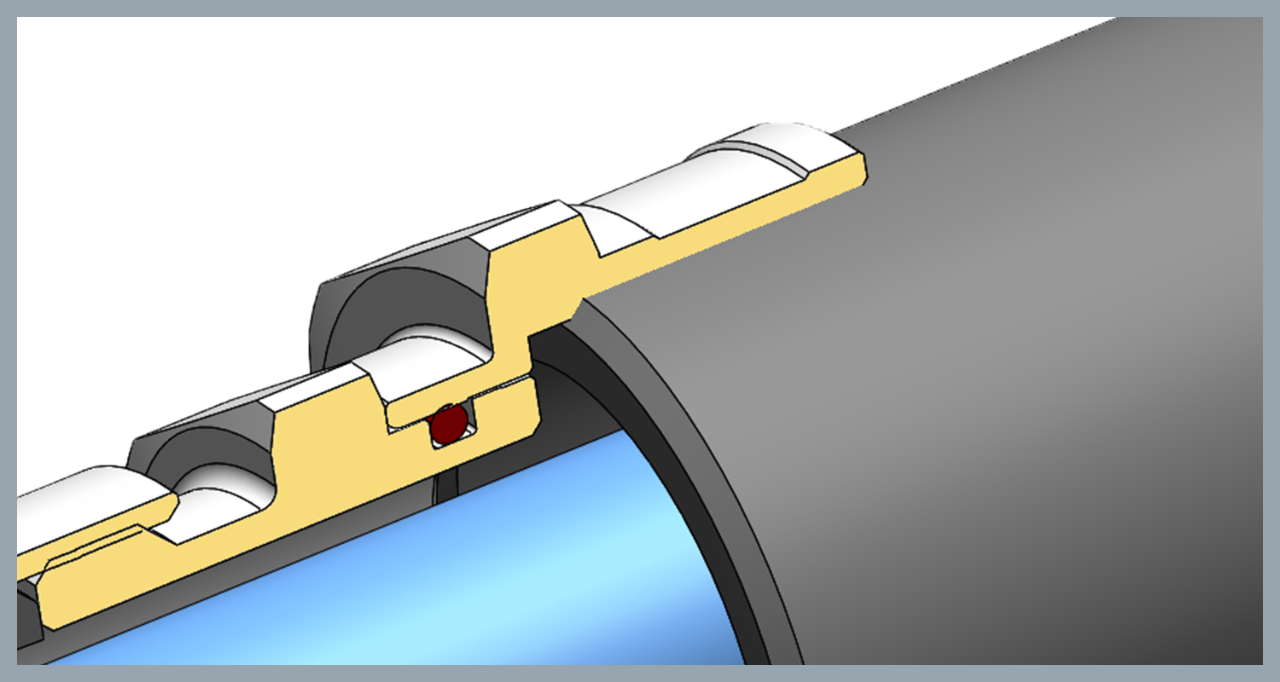

3. Female thread for rigid conduit - multiple female thread options available.
If you want to download 3D pictures, please contact our customer service.
View Eaton's full range of Capri ADE hazardous areas cable glands
New to the range? View our Capari ADE series overview to find out more about the range and view a cross-comparison featuring certification and function options.
Capri - over 60 years expertise and knowledge
For over 60 years, Capri has been known as a world-class solution in electrical termination for industrial and hazardous applications. Today, alongside Redapt and Raxton it continues to be at the forefront of innovation in the market.
productfamily.specification
![adcc-ordering-information.jpg]()
![adcs-ordering-information.jpg]()
Capri ADCC ordering information

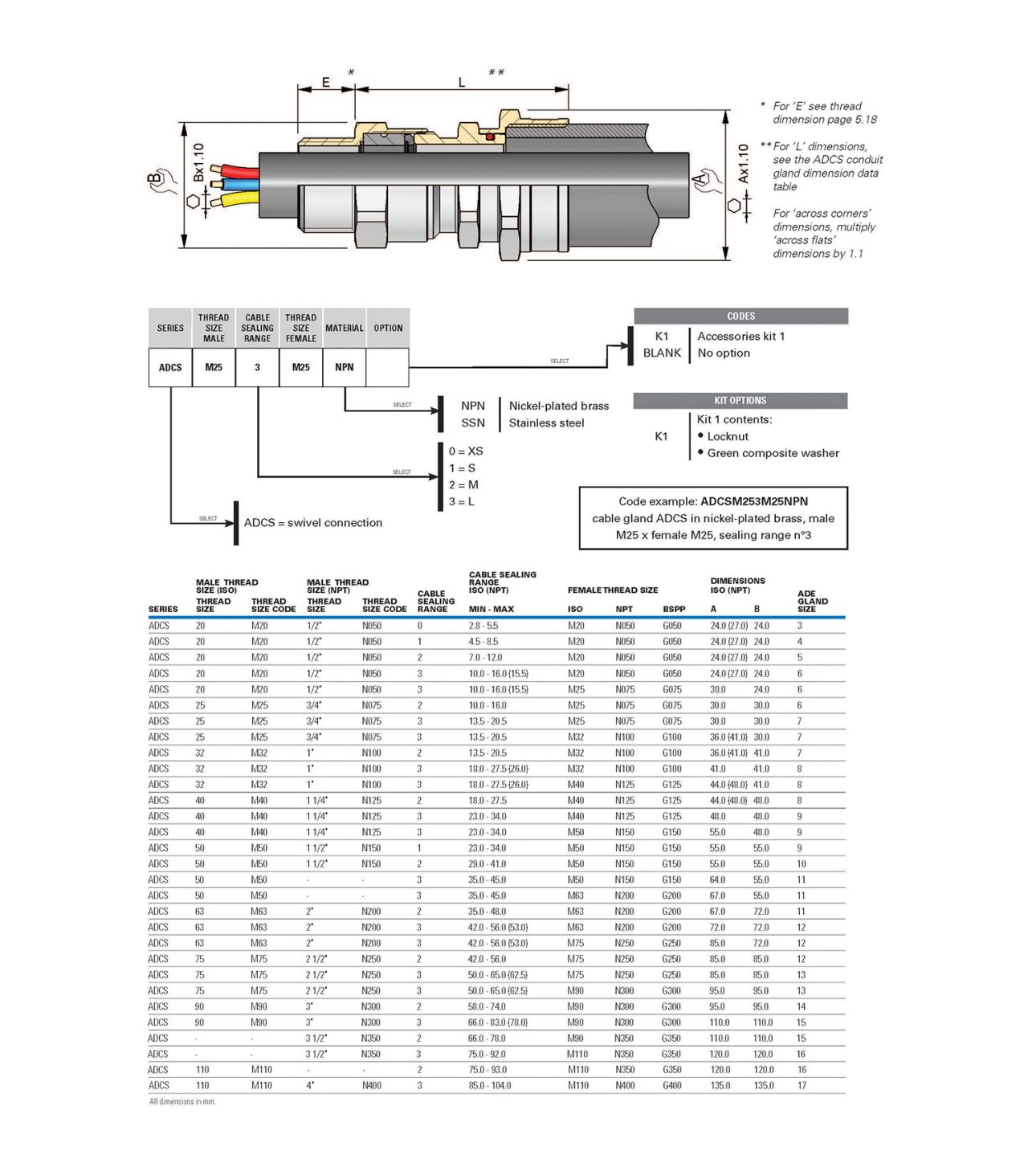

Capri ADCS ordering information
Looking for an accessory?
The Capri ADE Series has a range of accessories to enable a simpler, easier installation including clamping modules, sheather washers, earth tags, gaskets, locknuts, shrouds and serrated washers.
