Eaton’s fluid purifier systems remove free, emulsified and dissolved water, as well as gases and solid contaminants, helping improve system reliability, service life, and efficiency. Designed for a wide range of viscosities, they support applications from transformer oils to heavy gear lubricants.

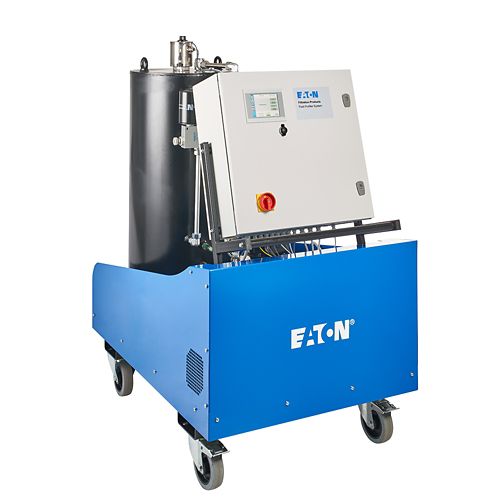

The mobile IFPM series is available in three sizes with flow rates of 2.6, 7.9, and 18.5 gal/min (10, 30, and 70 l/min). The compact, fully automated PLC‑controlled units include a WSPS 05 water sensor. Stationary IFPS versions are available on request.
| inlet connection: | 1 ¼“ SAE-flange 3000 PSI |
| outlet connection: | 1 ¼“ SAE-flange 3000 PSI |
| circulation flow rate:* | 18.9 GPM (50 Hz) / 22.6 GPM (60 Hz) |
| operating vacuum: | -8.7 PSI (-60 kPa) |
| heater power: | supply voltage A + E: 6000 Watt/400V supply voltage B: 6000 Watt/460V |
| filter type: | NF 631 |
| seal material: | Viton (FPM) |
| viscosity: | 56…3200 SUS |
| dewatering rate:** | 14 gal./day |
| protection class: | IP54 |
| ambient temperature: | +32°F to +100°F |
| fluid temperature: | +50°F to +176°F |
| external protection: | 25 A |
