Eaton's BECO INTEGRA CART KI cartridge housings are manufactured of AISI 316L stainless steel and designed for liquid filtration in Life Sciences applications.
Available in configurations for 1 to 30 filter cartridges and housing sizes accommodating 10" to 40" cartridges, these ATEX-certified housings are suitable for fluid groups 1 and 2 and can operate at temperatures up to 302°F (150°C) and pressures up to 145 psi (10 bar). Designed in accordance with Pressure Equipment Directive (PED) 2014/68/EU, they feature an optimized design and high-quality surface finish for efficient cleaning and sterilization and are compatible with Eaton BECO filter cartridges with a Code 7 adapter.

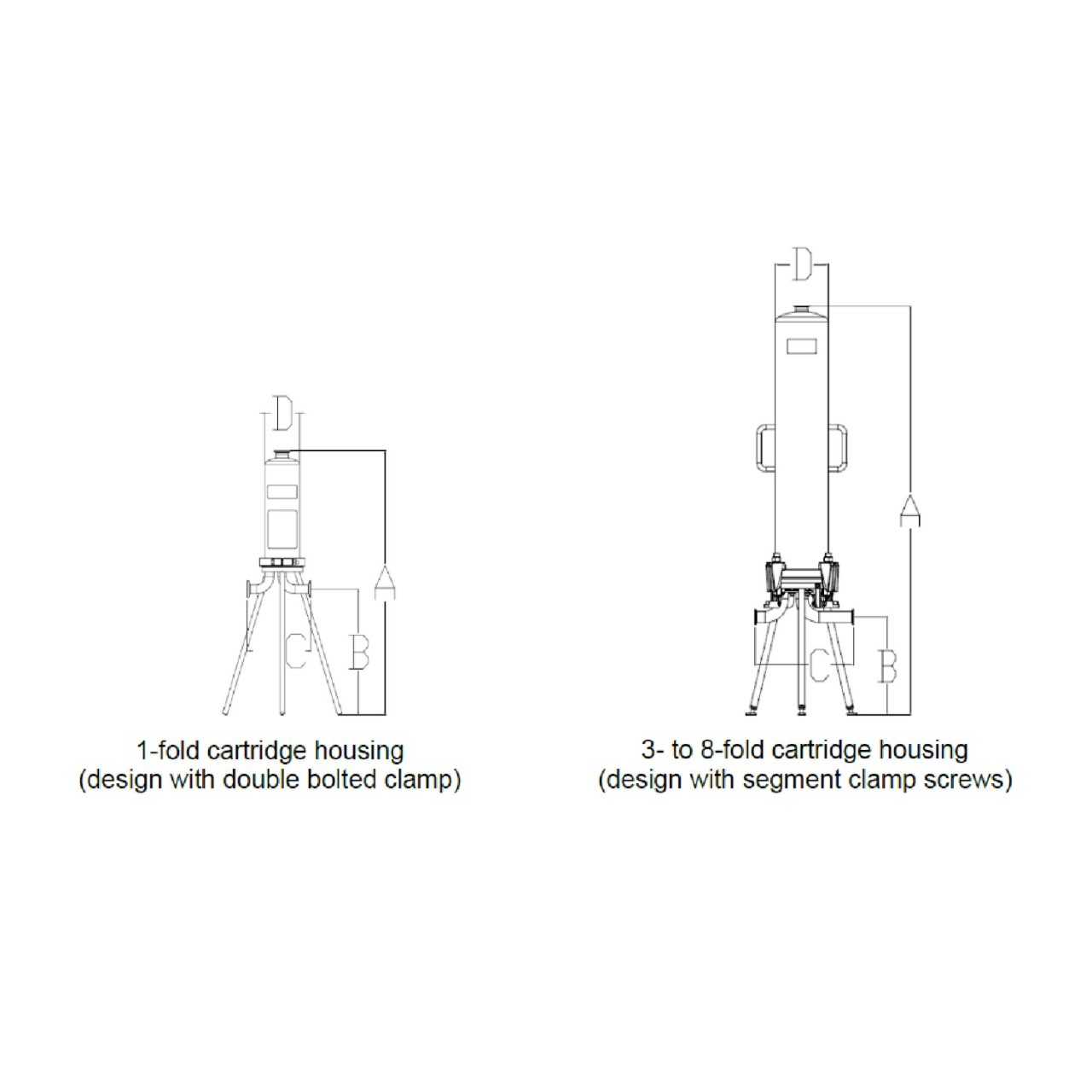

| Article no. | Qty | Cartidge length in Inch | Dimensions in (mm) | |||
| A | B | C | D | |||
| KI117C10 | 1 | 10 | 31.1 (790) |
14.76 (375) |
7.44 (189) |
4.0 (102) |
KI127C10 |
1 |
20 |
40.94 (1040) |
14.76 (375) |
7.44 (189) |
4.0 (102) |
KI137C10 |
1 |
30 |
50.78 (1290) |
14.76 (375) |
7.44 (189) |
4.0 (102) |
KI147C10 |
1 |
40 |
60.62 (1540) |
14.76 (375) |
7.44 (189) |
4.0 (102) |
| KI337C15 | 3 | 30 | 51.73 (1314) | 12.32 ÷ 14.21 (313 ÷ 361) | 12.20 (310) | 6.6 (168) |
| KI347C15 | 3 | 40 | 61.57 (1564) | 12.32 ÷ 14.21 (313 ÷ 361) | 12.20 (310) | 6.6 (168) |
| KI537C20 | 5 | 30 | 52.28 (1328) | 11.22 ÷ 13.11 (285 ÷ 333) | 14.88 (378) | 8.6 (219) |
| KI547C20 | 5 | 40 | 62.13 (1578) | 11.22 ÷ 13.11 (285 ÷ 333) | 14.88 (378) | 8.6 (219) |
| KI837C20 | 8 | 30 | 51.85 ÷ 53.78 (1317 ÷ 1366) | 11.18 ÷ 13.07 (284 ÷ 332) | 15.90 (404) | 10.8 (273) |
| KI847C20 | 8 | 40 | 61.69 ÷ 63.70 (1567 ÷ 1618) | 11.18 ÷ 13.07 (284 ÷ 332) | 15.90 (404) | 10.8 (273) |
| Larger housings and other versions available upon request. | ||||||
| Article no. | TC connections In-/Outlet | Volume gal (l) | Weight lb (kg) |
| KA117X25 | 1" |
0.79 (3.0) |
15.43 (7.0) |
| KA127X25 | 1" |
1.19 (4.5) |
17.64 (8.0) |
| KA137X25 | 1" |
1.72 (6.5) |
19.84 (9.0) |
| KA147X25 | 1" | 2.25 (8.5) | 22.05 (10.0) |
| KA337X40 | 1.5" | 4.62 (17.5) | 49.38 (22.4) |
| KA347X40 | 1.5" | 6.08 (23.0) | 53.79 (24.4) |
| KA537X50 | 2" | 7.66 (29.0) | 52,91 (24.0) |
| KA547X50 | 2" | 10.04 (38.0) | 55,12 (25.0) |
| KA837X50 | 2" | 13.08 (49.5) | 74.96 (34.0) |
| KA847X50 | 2" | 16.77 (63.5) | 81.57 (37.0) |
