The Eaton Model 950B fabricated duplex strainers operate continuously and feature two strainer basket housings connected by four individually operated valves. When the basket in the first housing becomes full, switching the flow to the second is easy using the butterfly valve assembly. Remove, clean, or replace the first basket for use again; the pipeline never shuts down.
-2-24-inch/Eaton-Model-950B-fabricated-carbon-steel-duplex-strainer-open-cover.jpg)
Applications
| Weight quick open | Weight bolted | ||||||||||||
| Pipe Size | A | Quick open B |
Bolted B | C | D | E | F | G | H | K | L | (lb / kg) | (lb / kg) |
| 2 | 35.25 / 895 | 36.63 / 930 | 34.25 / 884 | 6.63 / 168 | 16.00 / 406 | 1 | 12.00 / 305 | 10.25 / 203 | 3.00 / 76 | 8.00 / 203 | 0.75 / 19 | 320 / 145 | 345 / 156 |
| 3 | 39.50 / 1003 | 38.63 / 981 | 38.00 / 965 | 6.63 / 168 | 16.00 / 406 | 1 | 14.00 / 356 | 12.50 / 318 | 3.00 / 76 | 8.00 / 203 | 0.75 / 19 | 410 / 186 | 430 / 195 |
| 4 | 43.75 / 1111 | 41.50 / 1054 | 41.00 / 1041 | 8.63 / 219 | 18.00 / 457 | 1 | 14.00 / 356 | 14.50 / 368 | 3.00 / 76 | 10.00 / 254 | 0.75 / 19 | 650 / 294 | 700 / 317 |
| 6 | 53.00 / 1346 | 43.25 / 1099 | 42.00 / 1087 | 10.75 / 273 | 18.00 / 457 | 1 | 14.00 / 356 | 18.50 / 470 | 3.00 / 76 | 12.00 / 305 | 0.75 / 19 | 1300 / 589 | 1100 / 499 |
| 8 | 56.25 / 1429 | 48.00 / 1219 | 46.00 / 1168 | 12.75 / 324 | 25.00 / 635 | 1-1/2 | 10.00 / 254 | 22.25 / 565 | 3.25 / 83 | 17.00 / 432 | 0.75 / 19 | 1685 / 763 | 1800 / 815 |
| 10 | 64.75 / 1645 | 51.75 / 1314 | 52.00 / 1321 | 16.00 / 40 | 26.00 / 660 | 1-1/2 | 10.00 / 254 | 25.25 / 641 | 3.50 / 89 | 19.00 / 483 | 0.75 / 19 | 2120 / 960 | 2300 / 1042 |
| 12 | 72.50 / 1842 | 57.75 / 1467 | 54.00 / 1372 | 18.00 / 457 | 28.00 / 711 | 1-1/2 | 12.00 / 305 | 29.25 / 743 | 4.00 / 102 | 21.00 / 533 | 1.00 / 25 | 3270 / 1481 | 3500 / 1586 |
发送电子邮件

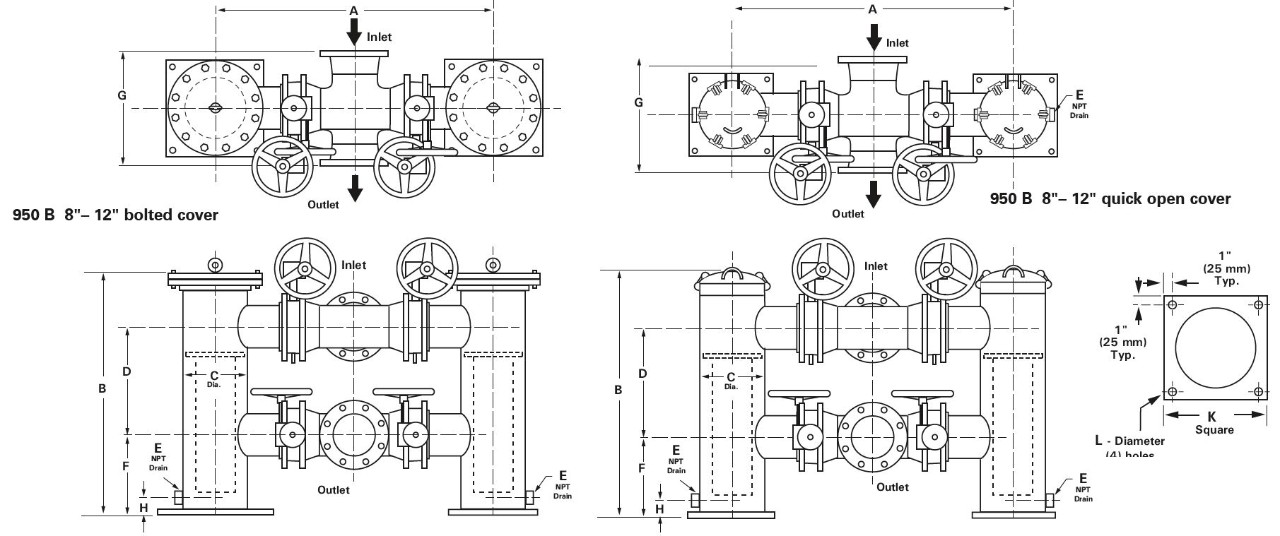

-2-24-inch/drawings/Model-950B-Duplex-Offset-Strainer-Quick-Opening-Cover-(QOC)-2-24-inch-1.JPG.transform/default-desktop/image.jpg)

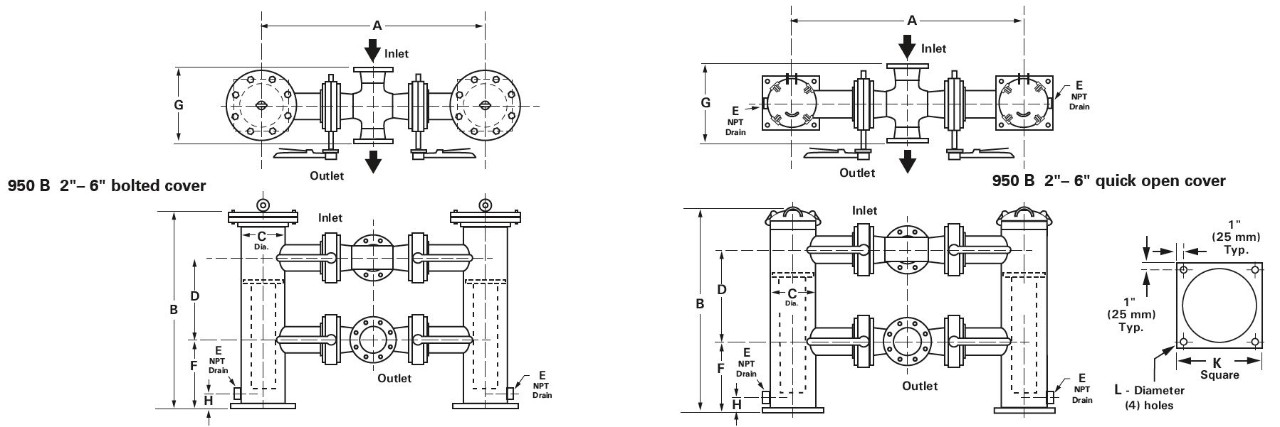

-2-24-inch/drawings/Model-950B-Duplex-Offset-Strainer-Quick-Opening-Cover-(QOC)-2-24-inch-2.JPG.transform/default-desktop/image.jpg)
