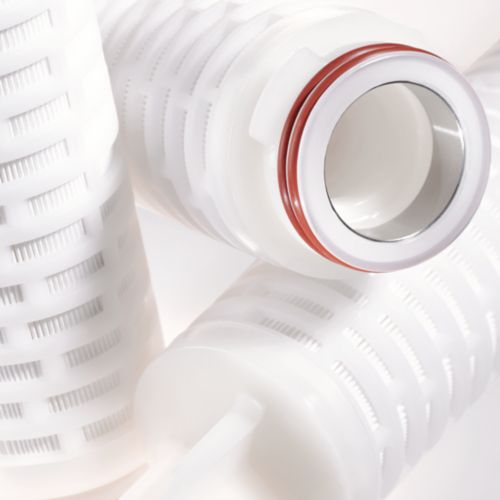

Filter cartridges

BECO MEMBRAN PSplus filter cartridges are available with retention ratings of 0.2 µm, 0.45 µm, 0.65 µm, and 1.0 µm, and designed for reliable removal of spoilage microorganisms and meet extended service life requirements of beverages, liquid food, cosmetics, fine chemical and process water final filtration.

产品咨询

返回到搜索

概述规格资源支持

Filter material

Polyethersulfone

Retention

Absolute (LRV-Values)

Max. operating temperature

176 °F (80 °C)

核心功能

The asymmetric polyethersulfone membrane provides high microbiological retention and can be integrity tested
Easily wettable, which means the integrity test is straightforward
The materials used enable regular cleaning and sterilization cycles and therefore very economic operation
Wide broad chemical compatibility from pH 1-14
Eaton can suggest the most economical configuration of pre and final filter

Eaton´s BECO filter cartridge tour

规格

筛选

在结果中进一步搜索

尝试其他搜索

您的搜索 "" 不能匹配到任何文档或产品。

Specifications

Article number	PES02, PES04, PES06, PES10
Filter material	Polyethersulfone
Retention rating (µm)	0.2, 0.45, 0.65, 1
Retention	Absolute
Lengths	10”, 20”, 30”, 40”
Adapter codes	0, 2, 7
Cages	Yes
Structure	Pleated
Pressure hold test Test pressure in psig and diffusion rate per 10"	PES02 35 psig (2.4 bar) ≤ (20 ml/min) PES04 25 psig (1.7 bar) ≤ (20 ml/min) PES06 14.5 psig (1.0 bar) ≤ (20 ml/min) PES10 9 psig (0.6 bar) ≤ (20 ml/min)
Max. operating temperature	176 °F (80 °C)
Max. differential pressure in flow direction	72.5 psid (5.0 bar) at 68°F (20 °C) 4.4 psid (0.3 bar) at 250 °F (121 °C)
Steam cycles	≥ 100 at 230 °F (110 °C) in 30 minutes
