Acoustical tee and T-bar fasteners

Mount fans in BA50F fastener in as little as 30 seconds

The Redi-Mount fan hanger is an octagon electrical box pre-assembled onto the t-bar fastener, and includes KwikWire cable and clamps for simply, fast installation.  This solution helps reduce the number of parts to manage and install on the job-site; compressing your install time.

Up to 50% faster installs with BA40 QuikFix fastener

Unique design makes BA40 fastener up to 50% faster to install than typical wire bound installation methods.

Less complexity on the job site

Eaton offers the a pre-assembled box and t-bar fastener, BA50-OB series solution, which reduces complexity and speeds installation on the jobsite.

• BA50-OB-24 includes 1-1/2" deep box pre-assembled to 24” span t-bar fastener
• BA50-OB-34 is a 2-1/8" deep box pre-assembled to 24” span t-bar fastener
• BA50-SB-24 is a 1-1/2" deep box pre-assembled to 24” span t-bar fastener
• BA50-SB-34 is a 2-1/8" deep box pre-assembled to 24” span t-bar fastener

BA15 troffer fasteners, commonly known as a hurricane clip

• Provides positive support for troffers and lay-in fixtures
• Use with straight lip or upturned lip fixtures
• Fits rectangular or round head T-bars
• Complies with NEC Article 410.16 for fixtures supported by suspended ceiling

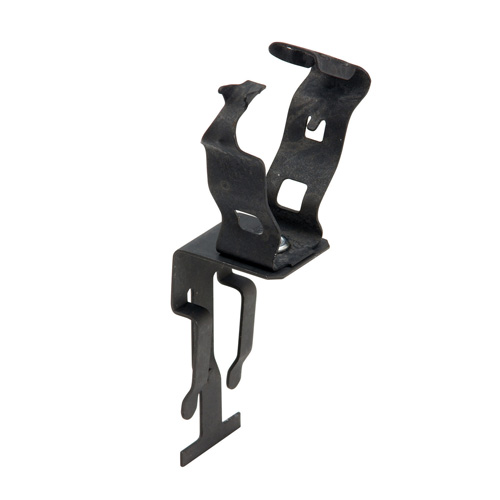

Side mount t-bar fasteners

• Positive method for supporting vertical boxes, conduit or cable above T-bar
• BA series features a ¼”-20 threaded impression
• Allow conduit to clear drop wires
• Part numbers:
  • BA-64T
  • BG-6-A6 for use with 3/8" conduit
  • BG-8-12-A6 for use with 1/2" or 3/4" conduit
  • BG-16-A6 for use with 1" conduit
  • BP-8-A6 for use with 1/2" EMT
  • BP-12-A6 for use with 3/4" EMT or 1/2" IMC, Rigid conduit
  • BP-16-A6 for use with 1"EMT or 3/4" IMC, Rigid conduit

Top mount t-bar fasteners

• Positive method for supporting horizontal boxes or conduit above T-bar
• Allow conduit to clear drop wires
• Fastener able to rotate 360 degrees
• Assemblies support MC, AC, sizes 14/2 through 10/3 or 3/8” FMC
• Part numbers:
  • BX4-A6 for single runs
  • BX4M-A6 for double runs
  • BX4-A5 for single runs
  • BX4M-A5 for double runs

Support fasteners

• Supports conduit and electrical boxes above T-bar
• Height adjusts from 4-1/4” to 7-1/4”
• Conduit fasteners can be attached at ¾” increments
• BX4M-A28 supports cable or FMC above T-bar
• Part numbers:
  • BA28 with1/2" holes to allow for adjustment between 4-1/4" and 7-1/4" at 3/4" increments
  • BX4M-A28 for double runs of 25 MC, AC, or FMC
  • BP-8-A28 for use with 1/2" EMT
  • BP-12-A28 for use with 3/4" EMT or 1/2" IMC, Rigid
  • BP-16-A28 for use with 1" EMT or 3/4" IMC, Rigid

Electrical box t-bar fasteners

• Supports octagonal or square boxes
• Allows for flush mounting or ¾” offset for plaster ring
• One BB27 box mounting clip with screw included with each hanger
• Load capacity: 20 lbs.
• Part numbers:
  • BA12 is a 24” span box hanger
  • BA12-12 is a 12” span box hanger
  • BA12-20 is a 20” span box hanger
  • BA12-30 is a 30” span box hanger
  • BB27 are the box mounting clips with screws
  • SRHMS 1/4 x 3/8 are the 1/4"-20 x 3/8" slotted round head machine screws


Heavy duty electrical box hangers

• Supports octagonal or square boxes on 24” span
• Bendable ends mount 1-1/2” or 2-1/8” deep boxes without tools
• Self-centering feature positions box on center
• Includes BA50C4T box mounting clip
• Ultimate static load capacity: 50 lbs. without dedicated drop wire
• Static load capacity: 70 lbs. with dedicated drop wire
• Not for use with fans.  For fan usage, see part number BA5OF
• Part numbers with suffix CAN are for Canada only
• Finish: pre-galvanized
• Part numbers:
  • BA50
  • BA50CAN
  • BA50D for box with 1-1/2" extension
  • BA50DCAN for box with 1-1/2" extension
  • BA50C4T are box mounting clips with hardware
  • BA50C3T (for Canada only) are box mounting clips with hardware
  • BA50E are extender brackets with hardware

BA50A adjustable box hanger t-bar

• For suspended ceilings
• Accommodates heights up to 8-3/4”
• Integral ruler enables height adjustments without measuring
• Ideal for installation of speaker cases, emergency light fixtures, etc. in suspended ceilings
• Static load capacity: 25 lbs. without dedicated drop wire, 70 lbs. with dedicated drop wire, 35 lbs. Canada

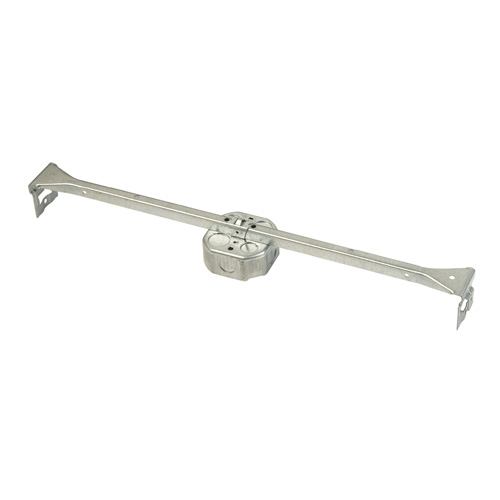

Pre-assembled box and t-bar fastener

• Pre-assembled solution helps speed installation
• Boxes have 1/2" and 3/4" knockouts
• Loading not to exceed 50 lbs. in U.S.A. without independent support, and 35 Lbs. in Canada
• Part numbers:
  • BA50-OB-24 includes 1-1/2" deep box pre-assembled to 24” span t-bar fastener
  • BA50-OB-34 is a 2-1/8" deep box pre-assembled to 24” span t-bar fastener
  • BA50-SB-24 is a 1-1/2" deep box pre-assembled to 24” span t-bar fastener
  • BA50-SB-34 is a 2-1/8" deep box pre-assembled to 24” span t-bar fastener

BA50F Redi-Mount fan hangers

Installs in as little as 30 seconds, compressing your install time.

• Pre-assembled fan/fixture hanger includes 4" x 1-1/2" deep octagon box and KwikWire cable and clamps
• Recommended for use in seismic areas
• UL listed for fan support up to 70 lbs. or fixture support up to 90 lbs., 35 lbs. Canada
• Finish: Pre-galvanized

BA40 QuikFix fixture bar fastening system

The patented QuikFix system features offset bar hangers with integral locking tabs that secure downlights to t-bar to help prevent lifting or sliding, and is up to 50% faster to install than typical wire bound installation methods.

• Pre-sized for 24” spacing
• No tools required
• Recommended for use in seismic areas
• UL listed for fixture support up to 50 lbs.

BA17 and BA18 light fixture t-bar fasteners

• Adjustable span from 20” to 30”
• Fits horizontal and vertical flanges
• Adjustable fixture position
• No center clips or tools required
• One set completes one fixture installation (four bars per set)
• View or download fastener catalog for additional details

BA20 light fixture t-bar fasteners

• Position adjustable within span of hanger
• Fixed span of 24” for T-bar applications
• Install with only screwdriver
• One set completes one fixture installation (four bars per set)
• View or download fastener catalog for additional details

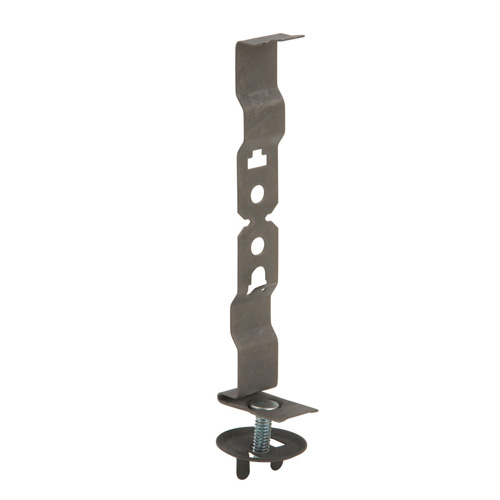

Suspension fasteners

• Allow for independent suspension of fixtures
• Fit most acoustical 15/16” t-bar sizes, except where noted below
• Static load capacity: 65 lbs.
• View or download fastener catalog for additional details
• Part numbers:
  • BA1 for 1/4"-20 x 5/8" stud size
  • BA1-24 for 1/4"-20 x 1-1/2" stud size
  • BA1-32 for 1/4"-20 x 2" stud size
  • BA1-T for #8-32 x 5/8" stud size with pal nut
  • BA1-T-BN for #8-32 x 5/8" stud size with brass nut
  • BA1-9 for 9/16" t-bar size,  1/4"-20 x 5/8" stud size
  • BA1-95 for 9/16" t-bar size, 1/4"-20 x 5/8" stud size
