Strut mounting brackets
Eaton's B-Line series strut mounting brackets include a number of clamps that secure EMT, flexible or rigid conduit and AC and MC cables to strut channel and B-Line series 4Dimension strut channel. Available in a variety of sizes to accommodate ranges of 1/2" to 4" size conduit and cables, these are truly a standard fastener to have on hand for electrical and mechanical strut support solutions.
Multi-functional conduit and cable clamps
One-piece design easily installed just one hand. Need to remove - its easy, and no need to disconnect adjacent clamps.
productfamily.specification
![]()

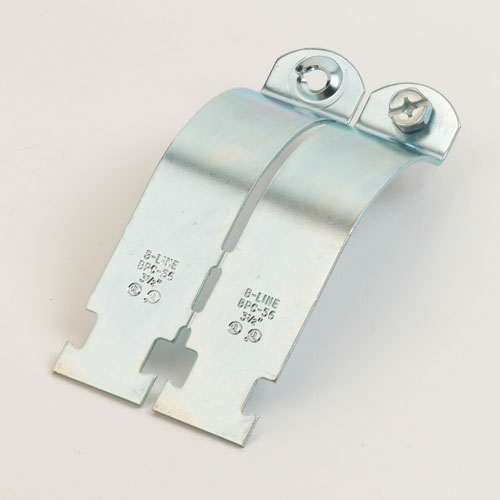

BPC series conduit clamps
![]()

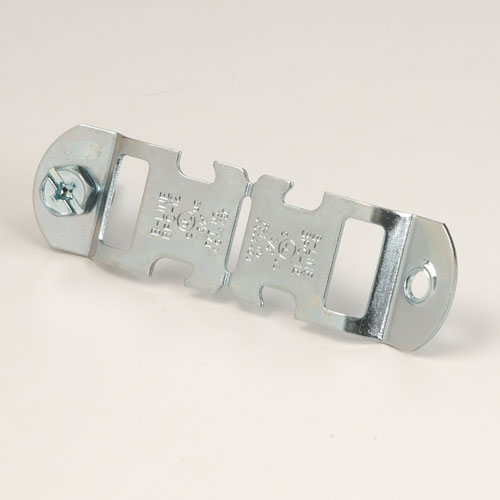

BPC-12 conduit clamp
![]()

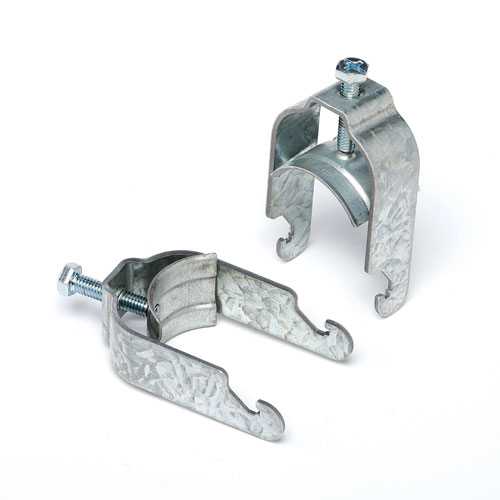

BL150 conduit and cable clamps
![]()

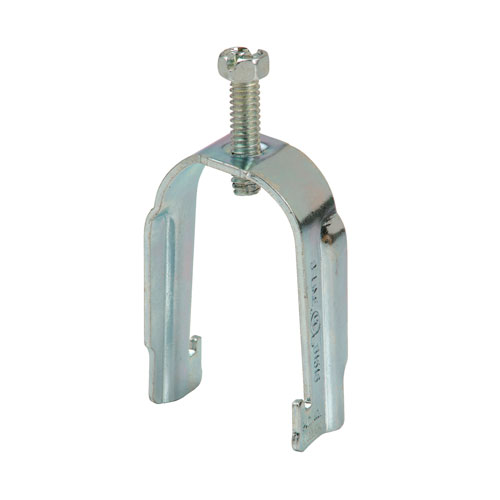

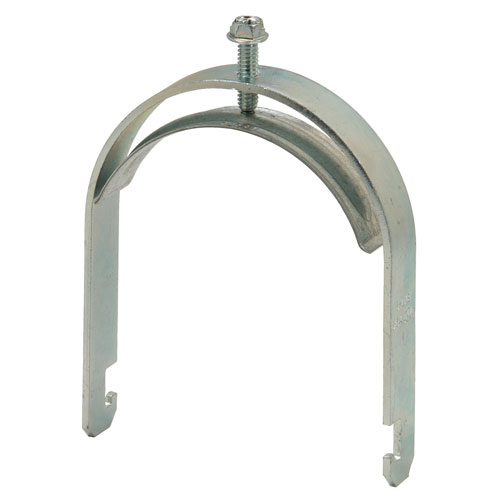

Conduit strut clamp
![]()
Conduit strut clamps
![]()

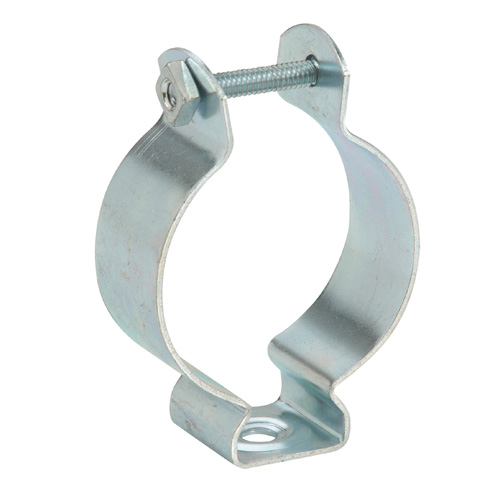

BL1400 series conduit hanger
![]()

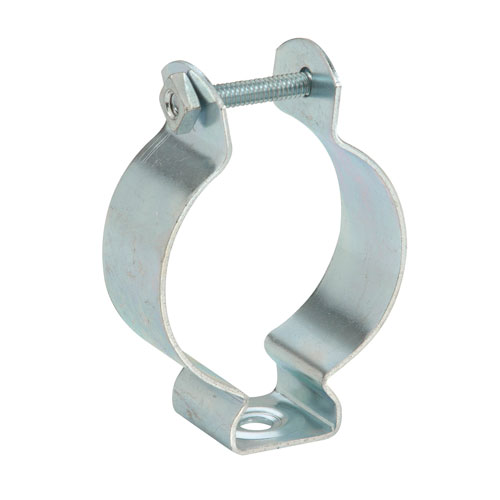

BL1430-SS4
![]()

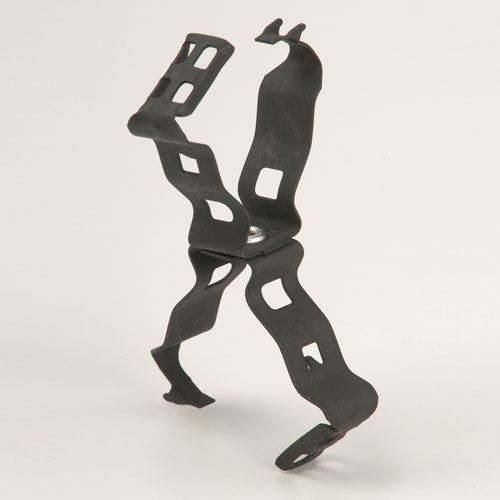

BG-8-12-G812
Strut mounting brackets
Eaton offers a wide variety of B-Line series strut mounting bracket fasteners. Below are just a few of the options. For additional information, view or download the B-Line series fastener catalog.
BPC series conduit clamps
- Patented multi-grip design fits rigid, IMC or EMT conduit
- Convenient break-apart clamp features retained bolt and 5⁄16" thread impression to eliminate handling of nuts and bolts
- Finish: pre-galvanized
- Static load capacity: 200 lbs.
- Recommended torque: 35 in-lbs.
- Part numbers and rigid or EMT conduit size information.
- BPC-8 for 1/2" rigid or EMT conduit size
- BPC-12 for 3⁄4" rigid or EMT conduit size
- BPC-16 for 1" rigid or EMT conduit size
- BPC-20 for 1-1/4" rigid or EMT conduit size
- BPC-24 for 1-1/2" rigid or EMT conduit size
- BPC-32 for 2" rigid or EMT conduit size
- BPC-40 for 2-1/2" rigid or EMT conduit size
- BPC-48 for 3" rigid or EMT conduit size
- BPC-56 for 3-1/2" rigid or EMT conduit size
- BPC-64 for 4" rigid or EMT conduit size
Conduit and cable clamps
See fastener catalog for additional information.
- One-piece assembled product, one-hand installation
- Easy removal without disconnecting adjacent clamps.
- Secure cables easily with protective saddle, helping prevent damage to conduit or cable.
- Clamp works on equal trade sizes for both EMT and rigid conduit
- Attaches to cable tray rungs and strut profiles; securing conduit, flexible conduit and cable to cable tray or traditional strut and open channel side of B-Line 4Dimension 4D22 strut
- Available in pre-galvanized and stainless steel 316
- Pre-galvanized part numbers and descriptions:
- BL050 for 1/2" EMT or rigid conduit size
- BL075 for 3⁄4"EMT or rigid conduit size
- BL100 for 1" EMT or rigid conduit size
- BL125 for 1-1/4" EMT or rigid conduit size
- BL150 for 1-12" EMT or rigid conduit size
- BL200 for 2" EMT or rigid conduit size
- BL250 for 2-1/2" EMT or rigid conduit size
- BL300 for 3" EMT or rigid conduit size
- BL350 for 3-1/2" EMT or rigid conduit size
- BL400 for 4" EMT or rigid conduit size
- Stainless steel type 316 part numbers and descriptions:
- BL050SS6 for 1/2" EMT or rigid conduit size
- BL075SS6 for 3⁄4"EMT or rigid conduit size
- BL100SS6 for 1" EMT or rigid conduit size
- BL125SS6 for 1-1/4" EMT or rigid conduit size
- BL150SS6 for 1-12" EMT or rigid conduit size
- BL200SS6 for 2" EMT or rigid conduit size
- BL250SS6 for 2-1/2" EMT or rigid conduit size
- BL300SS6 for 3" EMT or rigid conduit size
- BL350SS6 for 3-1/2" EMT or rigid conduit size
- BL400SS6 for 4" EMT or rigid conduit size
Conduit strut clamps
See fastener catalog for additional information.
- Attaches conduit, flexible conduit or cables to standard strut channels
- B1506S designed to secure and support MC/AC cables
- Unique one-piece design eliminates handling of hardware and allows easy installation and removal in side-by-side conduit runs
- Anti-rock feature prevents clamp from disengaging during installation
- Note: clamps without saddle are not recommended for flexible conduit or cable
- Finish: pre-galvanized
- Part number and description (no saddle)
- B1508 for 1/2" EMT rigid conduit size
- B1512 for 3/4" EMT and 1/2" rigid conduit size
- B1516 for 1" EMT and 3/4" rigid conduit size
- B1520 for 1-1/4" EMT and 1" rigid conduit size
- Part number and description (no saddle)
- B1506S will accept:
- 3/8" EMT conduit size
- AC Cable 14/2, 14/3, 14/4, 12/2, 12/3, 12/4, 10/2, 10/3, 10/4
- MC Cable 14/2, 14/3, 14/4, 12/2, 12/3, 12/4, 10/2, 10/3, 10/4
- BL1508S for 1/2" EMT conduit size
- BL1508S for 3/4" EMT conduit size
- BL1512S for 1" EMT and 3/4" rigid conduit size
- BL1520S for 1-1/4" EMT and 1" rigid conduit size
- BL1524S for 1-1/2" EMT and 1-1/4" rigid conduit size
- BL1532S for 2" EMT and 1-1/2" rigid conduit size
- BL1534S for 2" rigid conduit size
- BL1540S for 2-1/2" EMT / rigid conduit size
- BL1548S for 3" EMT / rigid conduit size
- BL1556S for 3-1/2" EMT / rigid conduit size
- BL1564S for 4" EMT / rigid conduit size
- B1506S will accept:
Conduit hangers
- For use with 1/2" thru 4" conduit
- Finish: zinc-plated or Dura-Copper (DCU)
- Static Load Capacity: 400 lbs.
- Part numbers for hangers with retained bolt and thread impression (9/32" mounting hole)
- BL1400 is a trade size 0, for 1/2" EMT / rigid conduit size
- BL1410 is a trade size 1, for 3/4" EMT / rigid conduit size
- BL1420 is a trade size 2, for 1" EMT / rigid conduit size
- Part numbers for hangers with bolt and nut (9/32" mounting hole for BL1425 and BL4230, the remainder have 11/32" mounting hole)
- BL1425 is a trade size 2.5 for 1-1/4" EMT conduit size
- BL1430 is a trade size 3 for 1-1/2" EMT and 1-1/4" rigid conduit size
- BL1440 is a trade size 4 for 1-1/2" rigid conduit size
- BL1450 is a trade size 5 for 2" EMT / rigid conduit size
- BL1460 is a trade size 6 for 2-1/2" EMT / rigid conduit size
- BL1470 is a trade size 7 for 3" EMT / rigid conduit size
- BL1480 is a trade size 8 for 3-1/2" EMT / rigid conduit size
- BL1490 is a trade size 0 for 4" EMT / rigid conduit size
Stainless steel conduit hangers with bolt and nut
- For use with 1/2" thru 4" conduit
- Material: Type 304 stainless steel
- Static load capacity: 400 lbs.
- Part number and description with 9/32" mounting hole
- BL1400-SS4 is a trade size 0, for use with 1/2" EMT / rigid conduit size
- BL1410-SS4 is a trade size 1, for use with 3/4" EMT / rigid conduit size
- BL1420-SS4 is a trade size 2, for use with 1" EMT / rigid conduit size
- BL1425-SS4 is a trade size 2.5, for use with 1-1/4" EMT conduit size
- BL1430-SS4 is a trade size 3, for use with 1-1/2" EMT and 1-1/4"rigid conduit size
- BL1400-SS4 is a trade size 0, for use with 1/2" EMT / rigid conduit size
- Part number and description with 11/32" mounting hole
- BL1440-SS4 is a trade size 4, for use with 1-1/2" rigid conduit size
- BL1450-SS4 is a trade size 5, for use with 2" EMT / rigid conduit size
- BL1460-SS4 is a trade size 6, for use with 2-1/2" EMT / rigid conduit size
- BL1470-SS4 is a trade size 7, for use with 3" EMT / rigid conduit size
- BL1480-SS4 is a trade size 8, for use with 3-1/2" EMT / rigid conduit size
- BL1490-SS4 is a trade size 9, for use with 4" EMT / rigid conduit size
- BL1440-SS4 is a trade size 4, for use with 1-1/2" rigid conduit size
Guide-Rite conduit to pedestal support
- Supports conduit from square computer floor pedestals
- Guide-Rite fastener for fast and easy installation with pliers
- BG-8-12-G6 will accept the following range diameter of .420 - .675: 14/2 thru 10/4 MC/AC cable and 5/16" or 3/8" flexible conduit
- Static load capacity: 25 lbs.
- Part number and description:
- BG-8-12-G6 for use with 3/8" EMT / rigid conduit size
- BG-8-12-G812 for use with 1/2" or 3/4" EMT / rigid conduit size
- BG-16-G-8-12 for use with 1" EMT / rigid conduit size
- BG-8-12-G20 for use with 1-1/4" EMT / rigid conduit size
- BG-8-12-G24 for use with 1-1/2" EMT / rigid conduit size
- BG-8-12-G32 for use with 2" EMT / rigid conduit size
- BG-8-12-G6 for use with 3/8" EMT / rigid conduit size
