HVAC - Heating, Ventilating, and Air Conditioning

HVAC (Heating, Ventilating, and Air Conditioning) systems are essential for maintaining a comfortable and healthy indoor environment by controling temperature, humidity, air quality, and ventilation. Eaton's solutions help ensure that HVAC equipment operates efficiently even in the most challenging conditions and provides comfort and energy savings for property owners.

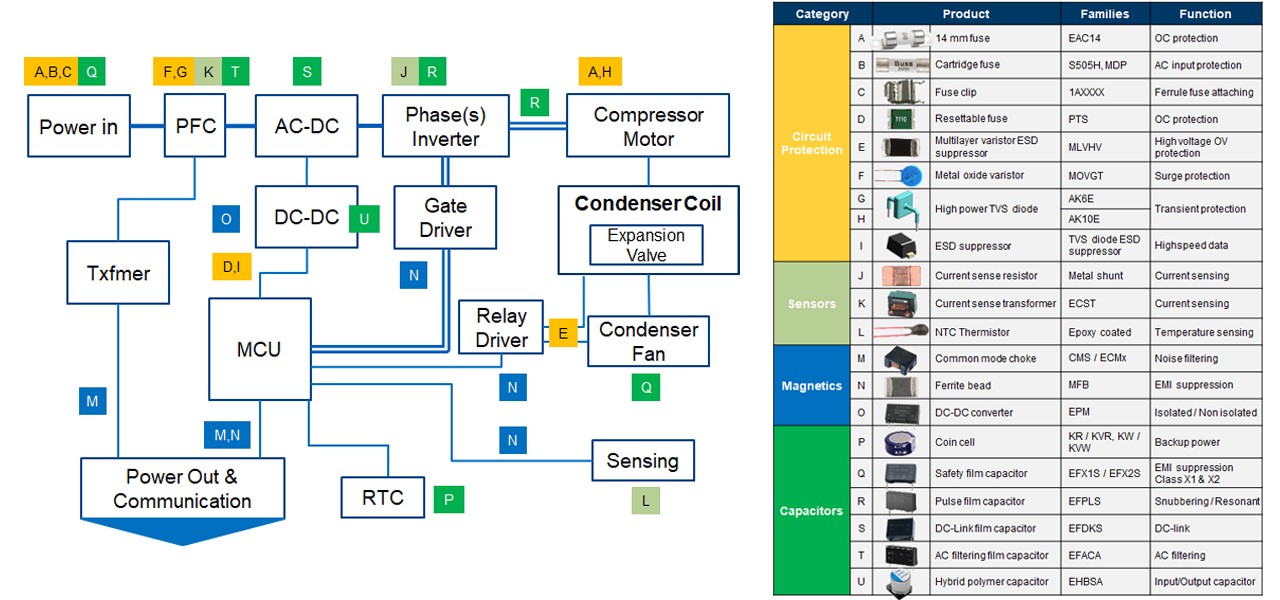

elxd-industrial-hvac-block-diagram

A. EAC14 14 mm fuse

B. Cartridge fuse: S505H, MDP

C. 1AXXXX PCB fuse clip

D. PTS PTC Resettable fuse

E. MLVHV Multilayer varistor ESD suppressor

F. MOVGT Integrated metal oxide varistor and gas discharge tube

G / H. High power TVS diode: AK6E, AK10E

I. ESD suppressor: TVS diode ESD suppressor

J. Metal shunt current sense resistor

K. ECST Current sense transformer

L. Epoxy coated NTC thermistor

M. Common mode chokes: CMS / ECMx

N. MFB Ferrite bead

O. EPM DC-DC converter

P. Coin cells: KR / KVR, KW / KVW

Q. EFX1S / EFX2S Safety film capacitor

R. EFPLS Pulse film capacitor

S. EFDKS DC-Link film capacitor

T. EFACA AC filtering film capacitor

U. EHBSA Hybrid polymer capacitor (commercial grade is coming)

Ensuring efficient and safe operation of HVAC systems

Eaton's one-stop electronics solution help customers enhance the efficiency, performance, and reliability of HVAC systems in impactful ways.
