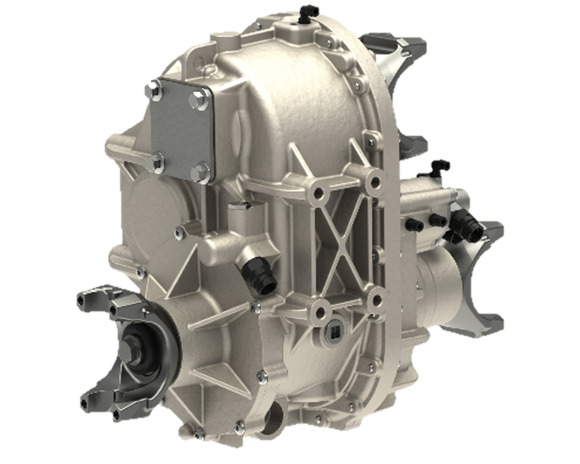

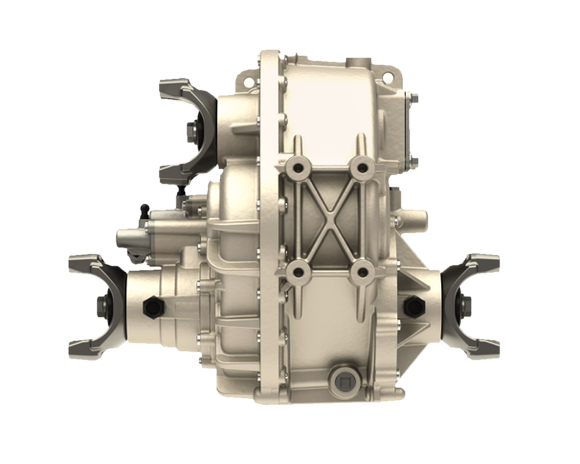

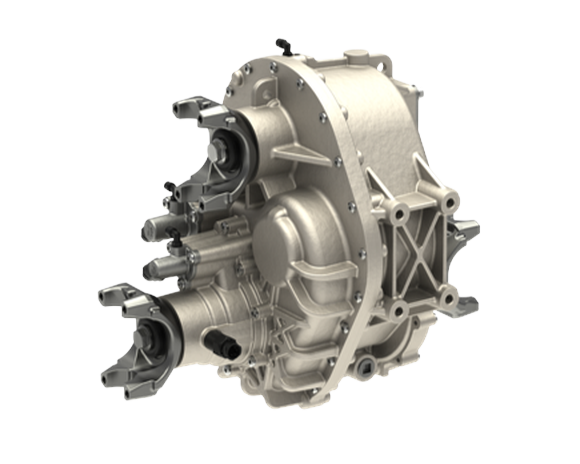

DURA4TRAK transfer case

A lightweight, all-geared 4x4/4x2 solution engineered for light- to medium-duty commercial vehicles from 6 to 15 tons GVW/GCW.

Weighing just 86 kg in an aluminum housing, it handles up to 5,500 Nm of input torque and splits power 50/50 front to rear across high (1:1) and low (2:1) ranges.

Its geared design delivers up to 500,000 km of B-10 life, with 4x4 operation up to 60 km/h and pneumatic actuation, with provision for electronic control.

PTO, speed sensor, and yoke or flange interfaces round out a package built for durability and application flexibility.

• Light weight, 5,500Nm input torque
• GVW/GCW up to 15ton: from LD to MD applications
• Geared design, up to 500k km B-10 life
• Remote assembly
• Pneumatic actuation with provision for electronic actuation
• PTO provision and Speed Sensor available
• Yoke and Flange interface available
• 4x4 and 4x2 modes
  • 4x4 use up to 60km/h – Low grip terrain
  • Engage 4x4 up to 30 km/h – Only with free wheels locked

• Built for the toughest jobs — Rated for the demanding 5,500 Nm torque class, this transfer case is engineered to power harsh applications that most units simply can't handle
• Modern, lightweight, and great value — Built at our Ranjangaon, India facility, it's an up-to-date, lightweight high power density design that delivers advanced performance and competitiveness
• A complete driveline, one source — It pairs seamlessly with Eaton transmissions and clutches, so the whole driveline is designed to work together as one proven, reliable system

Buses

• School
• Troop transportation
• Farm workers transportation
