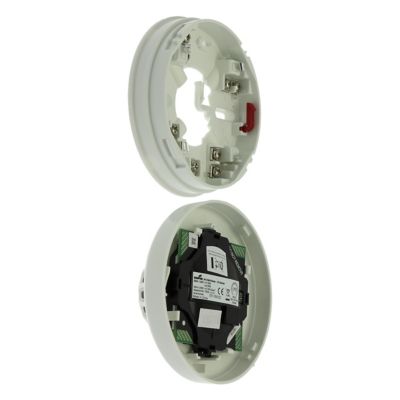

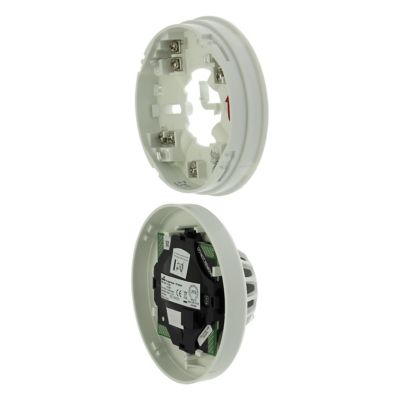

Eaton Conventional detector, Conventional, Optical, EN54 Systems, White Plastic, 12 volt.
| Product Name |
Eaton smoke detector for intruder system
|
| Catalog Number |
M12
|
| Product Length/Depth |
107 mm
|
| Product Height |
57 mm
|
| Product Width |
107 mm
|
| Product Weight |
0.135 kg
|
| Certifications |
CE marking
|
| Operating principle |
Combination
|
| Current supply primary |
Battery/accumulator
|
| Supply voltage - max |
16 V
|
| Supply voltage - min |
10 V
|
| Voltage type of supply voltage |
DC
|
| Back-up battery included |
None
|
| Alarm current - max |
14 mA
|
| Alarm current - min |
0.5 mA
|
| Construction material |
ABS
|
| Humidity (Non Condensing) - Max |
93 %
|
| Humidity (Non Condensing) - Min |
0 %
|
| System typology |
Conventional (Non-addressable)
|
| Product branding |
Eaton
|
| Color |
White
|
| Degree of protection |
IP40
|
| System wiring |
0.5 - 2.5 mm
|
| Integrated function |
Networkable Via Cable
|
| Cable entry |
Rear
|
| Mounting position |
Ceiling in open areas
|
| Mounting method |
Surface mounting
|
| EN Certification Standards |
EN54 Pt5 (Heat and Point Detectors)
EN54 Pt7 (Smoke Detector) |
| RAL-number (Akin) |
9003
|
