| Product Name |

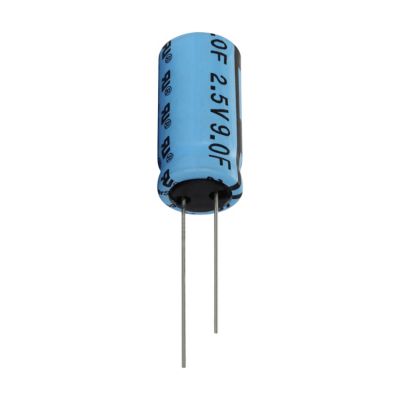

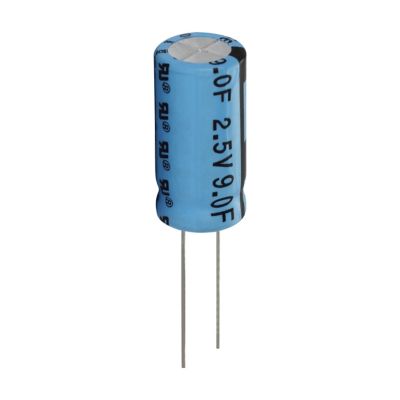

Eaton M cylindrical cell supercapacitor
|
| Catalog Number |
M1325-2R5905-R
|
| UPC |
051712207911
|
| Product Height |
28.4 mm
|
| Product Weight |
5.6 g
|
| Compliances |
RoHS Compliant
|
| Certifications |
UL Recognized
|
| Packing |
Bulk
|
| Contact configuration |
Vertical
|
| Size |
13 x 28 mm
|
| Terminals |
Through hole
|
| Shape |
Cylindrical
|
| DC equivalent series resistance (ESR) |
0.03 Ω
|
| Operating temperature range |
-40 °C to +60 °C
|
| Series |
M
|
| Max voltage |
2.5 V
|
| Capacitance |
9 F
|
| Leakage |
0 µA
|
| Thermal resistance |
53 °C/W
|
| Energy |
28.1 J
|
| Power |
25 W
|
| Peak current (1 sec) |
8.9 A
|
| Continuous current (15 °C rise) |
3.1 A
|
| Capacitance end of life rating |
70%
|
| ESR end of life rating |
200%
|
| Grade |
Commercial
|
