Tufflite TFC - Chemical & impact resistant industrial light

The Tufflite TFC range is an IP66 rated industrial light fixture, manufactured with a robust glass reinforced polyester base and an acrylic controller secured with stainless steel clips.

Providing a polycarbonate free luminaire ideal for use in harsh environments where corrosive chemicals may be present such as industrial manufacturing plants, workshops, food factories and maintenance areas.

IP66 Ingress Protection
Dust tight and water jet proof for stay clean operation
Quick installation
Fast fit mounting clips
Prismatic diffuser
Optimum light distribution and glare reduction

One light, one fixing, one flexible solution

The Tufflite TFC has a choice of switch start and high frequency control gear, T5 and T8 lamp options and integral 3 hour maintained emergency variants. Through wiring kits are also available as separate accessories adding to the versatility of the range.

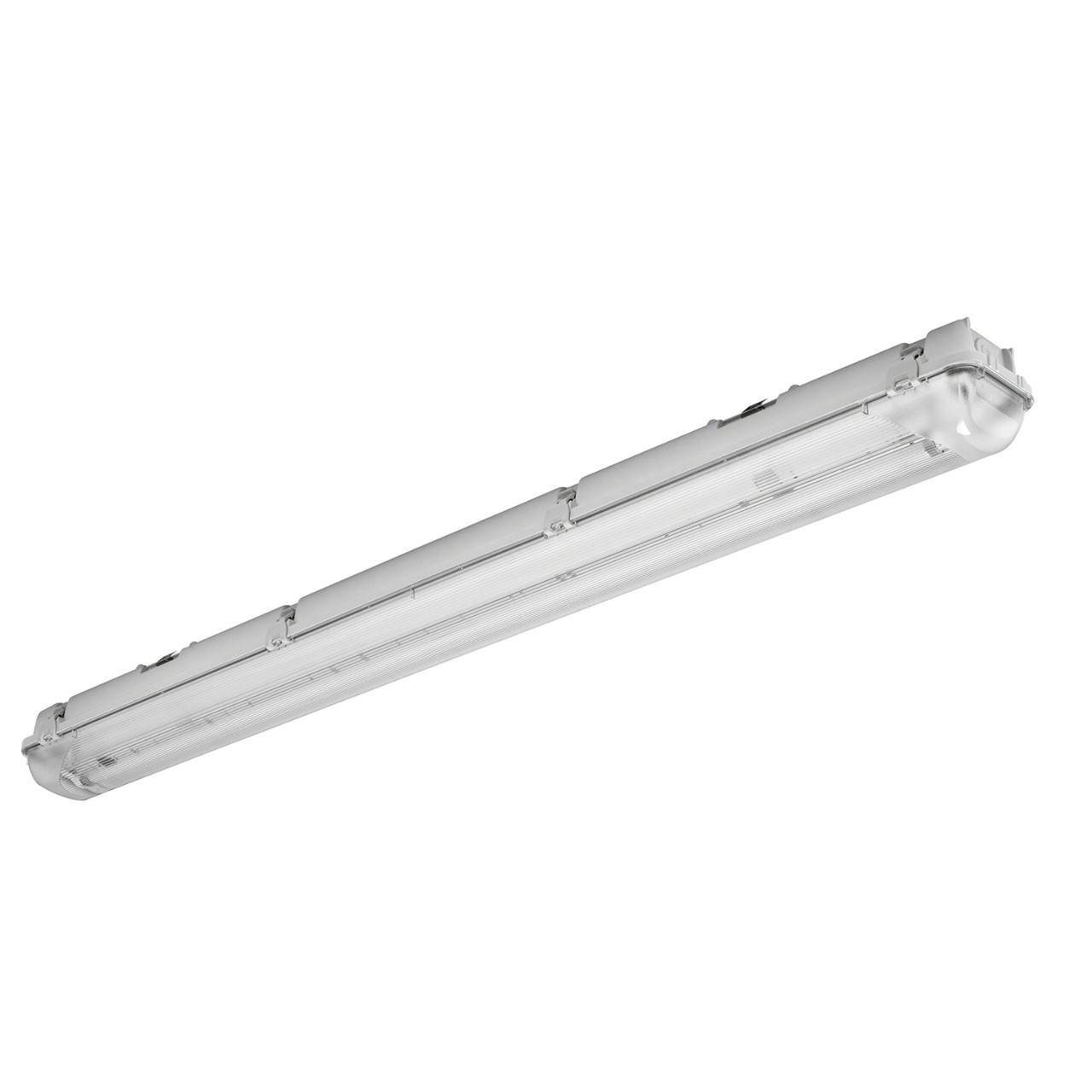

Tufflite TFW IP66 Single

Chemical resistant for applications that demand more

The Tufflite TFC has also been developed with chemical resistance to provide you with extra peace of mind when installing the luminaire in industrial applications.

Eaton’s 5 year extended warranty comes as standard, for quality you can trust

When purchasing Eaton lighting products, you are safe in the knowledge that you are supported by our simple, reliable warranty with no hidden caveats. We support: 24/7 operation with no annual hours usage restrictions, 12 months parts and labour with an additional 48 months on parts and no need to register your product.

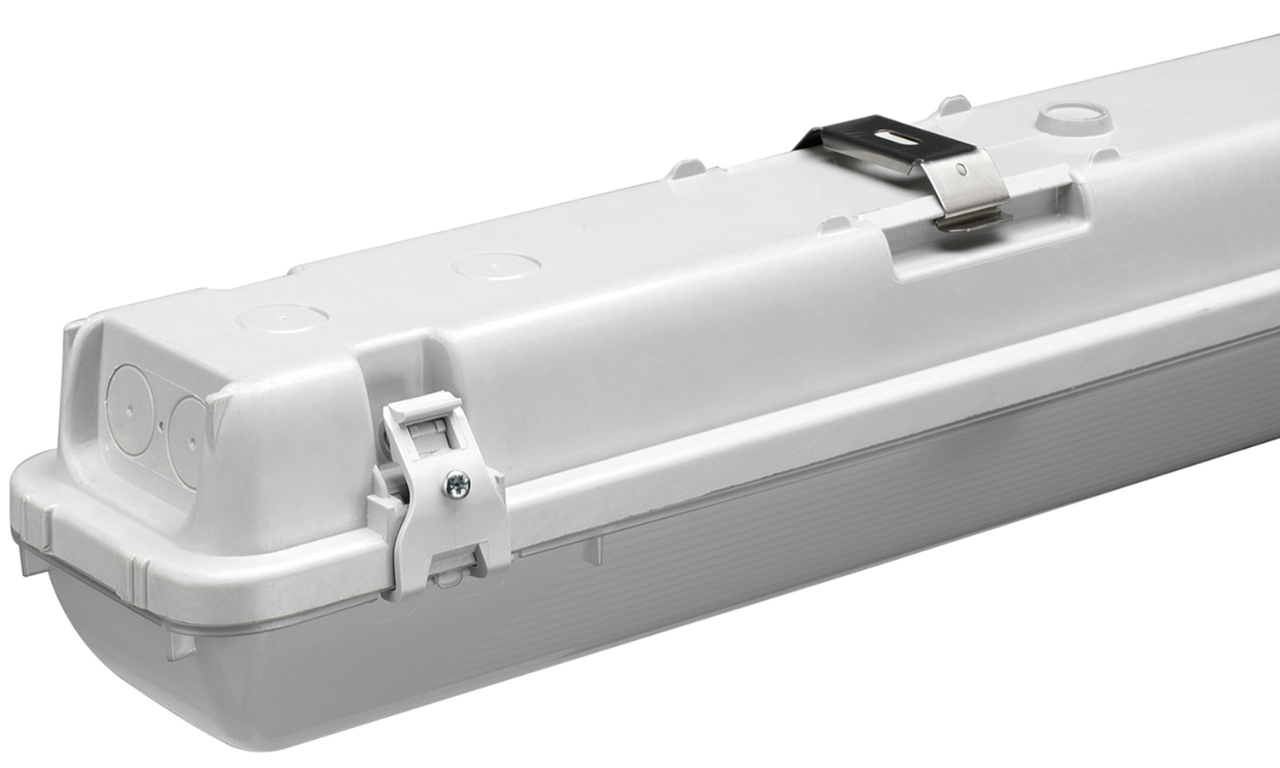

Easily clicks into place

The Tufflite TFC includes fast fit mounting clips to avoid the need for drilling, ensuring that you can install the product quickly and simply without compromising the ingress protection.

View the rest of Eaton's high bay, low bay and industrial lighting range

Energy efficient, reliable and compliant - with a payback of as little as 9 months...

Energise your industrial lighting - Maximise the value of your investment with LED lighting optimised for energy-efficiency and compliance
productfamily.specification

Part numbers

Lamp Rating  Gear Option  Cat No  Weight (kg)  Emergency Cat No Weight (kg)
TFC - GRP body and acrylic diffuser, for T5 lamps (not supplied)
1 x 28W  High Frequency  TFC6128Z  2.7 EBTFC6128Z  4.1
2 x 28W  High Frequency  TFC6228Z  4.5 EBTFC6228Z 5.9
1 x 35W  High Frequency  TFC6135Z  3.6 EBTFC6135Z  5.0
2 x 35W  High Frequency  TFC6235Z  6.2 EBTFC6235Z 7.6
1 x 49W  High Frequency  TFC6149Z  3.6 EBTFC6149Z 5.0
2 x 49W  High Frequency  TFC6249Z  6.2 EBTFC6249Z  7.6
1 x 54W  High Frequency  TFC6154Z 2.7 EBTFC6154Z 4.1
2 x 54W  High Frequency  TFC6254Z  4.5 EBTFC6254Z  5.9


TFC - GRP body and acrylic diffuser, for T8 lamps (not supplied)
1 x 18W  High Frequency  TFC6118Z  1.8
2 x 18W  High Frequency  TFC6218Z 2.1
1 x 36W  High Frequency  TFC6136Z  2.7 EBTFC6136Z  4.1
2 x 36W  High Frequency  TFC6236Z  4.5 EBTFC6236Z  5.9
1 x 58W  High Frequency  TFC6158Z  3.6 EBTFC6158Z  5.0
2 x 58W  High Frequency  TFC6258Z 6.2 EBTFC6258Z 7.6
1 x 70W  High Frequency  TFC6170Z  4.3 EBTFC6170Z  5.7
2 x 70W  High Frequency TFC6270Z  7.9 EBTFC6270Z  9.3
For microwave sensor control prefix FO part number with IM, e.g. TFC6149Z becomes IMTFC6149Z
For microwave with corridor function prefix DD part number with IM eg TFC6149DD becomes IMTFC6149ZDD
For switching PIR sensor control prefix FO part number with D, e.g. TFC6149Z becomes DTFC6149Z
For PIR sensor with photocell function prefix RD part number with D, e.g. TFC6149RD becomes DTFC6149RD


Accessories  Cat No  Weight (kg)
Stainless steel clip kit, 12 x steel clips  TF6SCKIT12 0.1
Plastic clip kit, 12 x plastic clips  TF6PCKIT12  0.2
Rear mounting bracket (pair)  TF6RMBKT2  0.5
Through wire kit for 600mm, 18W  TF6TWKIT600  0.2
Through wire kit for 1200mm, 28/54/36W  TF6TWKIT1200  0.4
Through wire kit for 1500mm, 35/49/58W  TF6TWKIT1500  0.5
Through wire kit for 1800mm, 70W  TF6TWKIT1800  0.6

Technical specification

Lamp and Control Gear Options • 18W, 36W, 58W and 70W T8 fluorescent 4000°K - G13 cap
• 28W, 35W (HE), 49W, 54W (HO) T5 fluorescent 4000°K - G5 cap
• High frequency
• DALI options available)
Materials • Body - glass reinforced polyester (GRP), RAL 7035
• Gasket - polyurethane
• Diffuser - UV stabilised prismatic acrylic
• Clips - 501 stainless steel
• Geartray - sheet steel, white finish
Installation Notes • Ceiling fixing brackets supplied, removing the need to seal fixing holes
• 20mm cable entry holes at each end, supplied complete with sealing plugs
• 3/4 screw terminal block
• Through wiring kits available
• Geartray hangs on body for ease of install, locates in position with tool free clips
• Simple to use stainless steel diffuser clips
• Supplied excluding lamps
• This luminaire is IP66 rated, this rating only applies when the luminaire is mounted observing the correct orientation and must not be positioned in direct sunlight.
In exterior applications it is recommended the luminaires are protected under a canopy or cover, the housing is not suitable for mounting with the base directly on a vertical surface in the horizontal orientation.
Options • T5 and T8 single and twin lamp versions available
• Through wiring kits available for all lengths
• Fully integral emergency conversion, 3 hour duration
• Intellem self-test emergency versions available
• Suitable for use on defined escape routes
• Microwave sensor option (‘IM’ prefix)
• PIR and photocell option available (‘D’ prefix)
• DALI option available (‘DD’ suffix)
Specification To specify state: Weatherproof luminaire, sealed to IP66, with GRP body and acrylic prismatic light controller, secured by hinged stainless steel latches and removable geartray retained by tool free clips, as Eaton’s Tufflite TFC range, part no. ________
