Eaton's BECO INTEGRA CART KN inline cartridge housings are manufactured of AISI 316L stainless steel and are designed for tank venting, gas filtration and liquid filtration in Life Sciences applications.
Available in a single-cartridge configuration for filter cartridges from 5" to 40", these ATEX-certified housings are suitable for fluid group 2 media and are designed in accordance with Pressure Equipment Directive (PED) 2014/68/EU. They feature an optimized design and high-quality surface finish for efficient cleaning and sterilization and are compatible with Eaton BECO filter cartridges featuring a Code 7 adapter for reliable operation.

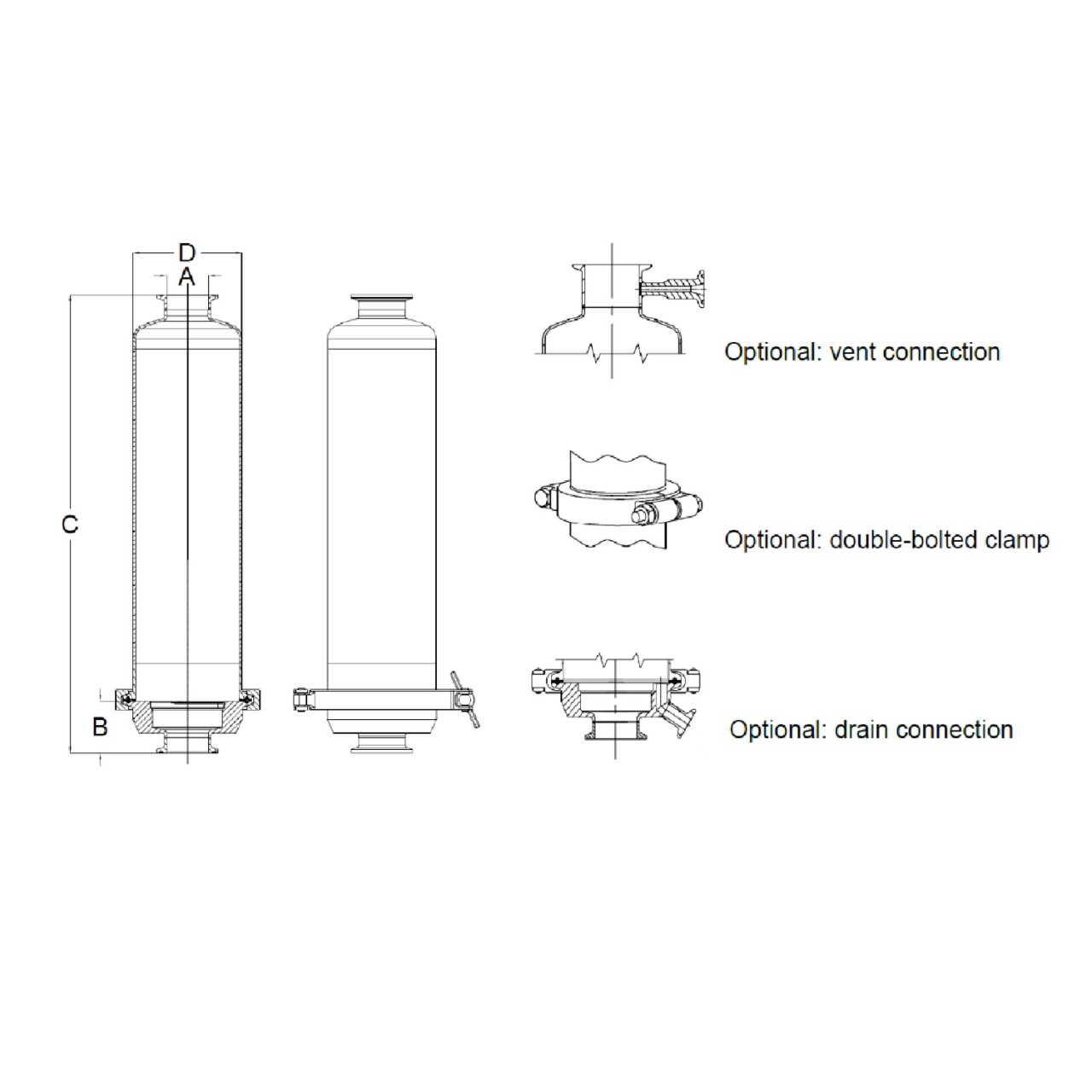

| Article no. | Qty | Cartidge length in Inch | Dimensions in (mm) | |||
| A | B | C | D | |||
| KNB05C15 KNP05C15 |
1 | 5 | 1.37 (34.8) |
1.69 (43) |
10.08 (256) |
3.5 (88.9) |
KNB10C15 |
1 |
10 |
1.37 (34.8) |
1.69 (43) |
14.80 (376) | 3.5 (88.9) |
KNB20C15 |
1 |
20 |
1.37 (34.8) |
1.69 (43) |
24.65 (626) | 3.5 (88.9) |
KNB30C15 |
1 |
30 |
1.37 (34.8) |
1.69 (43) |
34.49 (876) | 3.5 (88.9) |
| KNB40C15 KNP40C15 |
1 | 40 | 1.37 (34.8) | 1.69 (43) |
44.33 (1126) | 3.5 (88.9) |
Other designs upon request. Product contacting parts ground to Ra < 0.8 µm (KNB) and Ra < 0.4 µm (KNP) |
||||||
| Article no. | In-/Outlet | Volume gal (l) | Weight lb (kg) | Perm. pressure psi (bar) at -4 to °F (-20 to 150 °C) |
| Fluid group 2 (liquids and gases) |
||||
| KNB05C15 KNP05C15 |
1.5" TC | 0.32 (1.2) |
5.73 (2.6) |
-1/+10 |
KNB10C15 |
1.5" TC |
0.50 (1.9) |
6.61 (3.0) |
-1/+10 |
KNB20C15 |
1.5" TC |
0.90 (3.4) |
8.82 (4.0) |
-1/+10 |
KNB30C15 |
1.5" TC |
1.29 (4.9) |
11.02 (5.0) |
-1/+10 |
| KNB40C15 KNP40C15 |
1.5" TC | 1.69 (6.4) | 13.23 (6.0) |
-1/+10 |
Other designs upon request. Product contacting parts ground to Ra < 0.8 µm (KNB) and Ra < 0.4 µm (KNP) |
||||
