MV switchgear temperature monitoring

Contact us

Monitor critical bus bar and joint connections in medium voltage switchgear

Electrical failures are caused by a number of different factors, including:

The effects of constant thermal cycling on the joints

Assets aging, mechanical damage, or environmental factors

Intrusion and human error as a result of maintenance processes

Corrosion of the metal components damaging insulation

MV switchgear temperature monitoring brochure

Download brochure

Protect MV switchgear with continuous thermal monitoring sensors

Continuous thermal monitoring technology enables critical MV switchgear joints and busbar connections to be monitored in real-time.

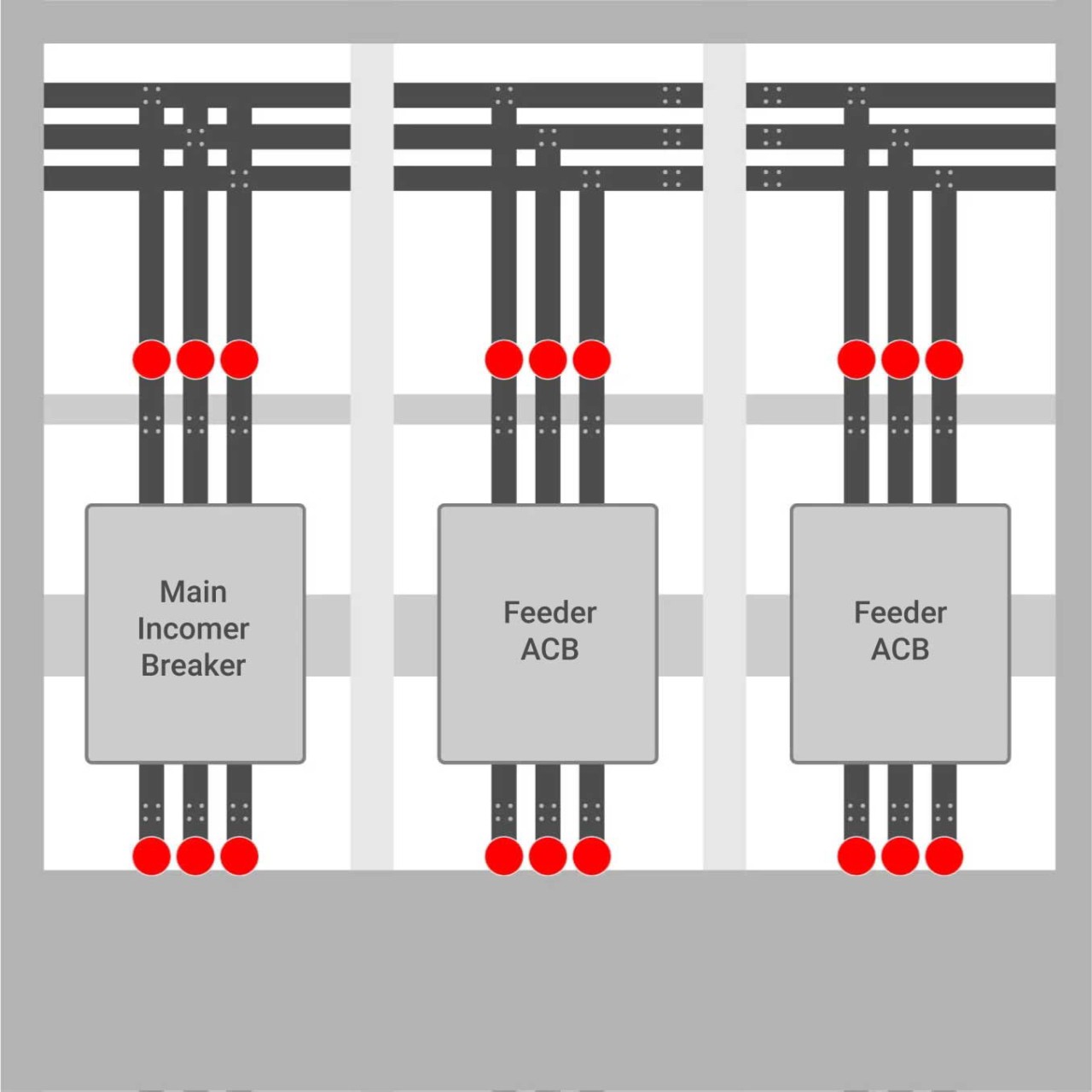

Thermal monitoring locations include:

IR sensors monitor main incomer breakers, line and load side
IR sensors monitor ACB feeders, line and load side

Benefits of MV switchgear monitoring

Eaton Exertherm CTM solution for MV switchgear provides an early warning of potentially compromised assets before they fail, causing unplanned facility outages. The MV switchgear solution provides protection from thermal asset changes where the eye can’t see and the hands can't reach. Our unique ‘fit and forget’ 24/7 electrical infrastructure monitoring technology gives you the peace of mind that your assets are running safely.

Reduce the likelihood of electrical failures and improve operational stability with 24/7 monitoring

Reduce human interaction with potentially faulty assets to increase personnel and on-site safety

Reduce electrical fire or explosion risk resulting from arc flash due to compromised electrical assets

Reduced the need for additional costs and the unnecessary intrusion of unplanned maintenance

Features of MV switchgear monitoring

Eaton Exertherm CTM solution for MV switchgear is suitable for both new build and retro-fit installation, and also OEM vendor neutral.

Permanent installation

Permanently installed sensors for MV switchgear mean you can fit and forget, only needing to return when a potential issue is flagged up.

Cost efficient

Permanently installed, factory‑fitted or retrofittable, CTM sensors work around the clock and silently in the background.

Real-time data

Once installed our sensors work 24/7, 365 days a year to continuously monitor your critical electrical assets and provide condition data.

Lifetime guarantee

We're so confident with the resilience built into Eaton technology that we provide a lifetime guarantee on our sensor hardware.

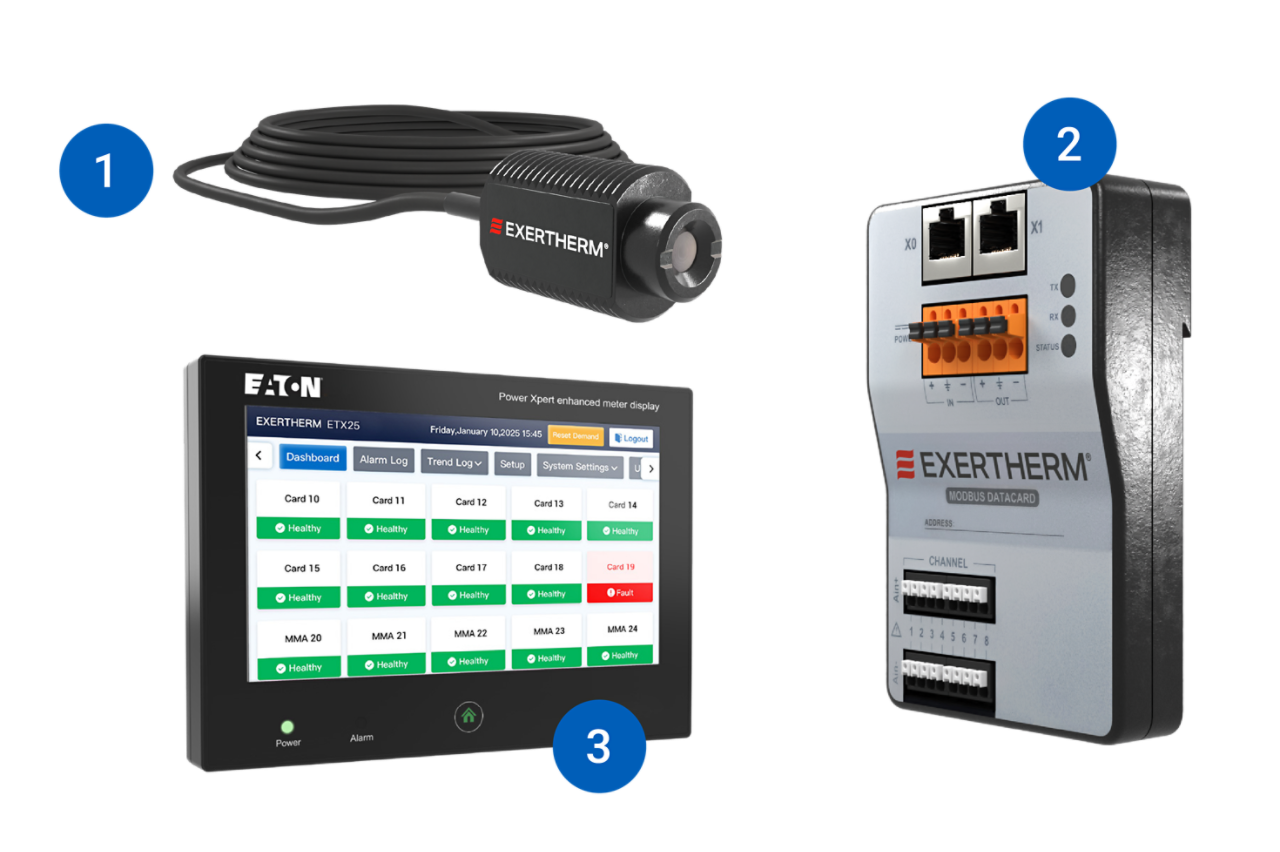

MV Switchgear Kit

IR sensor

For busbar temperature monitoring
Exertherm modbus datacard

Temperature monitoring for cable
terminations collects data from
8 x IR / EM cable sensors

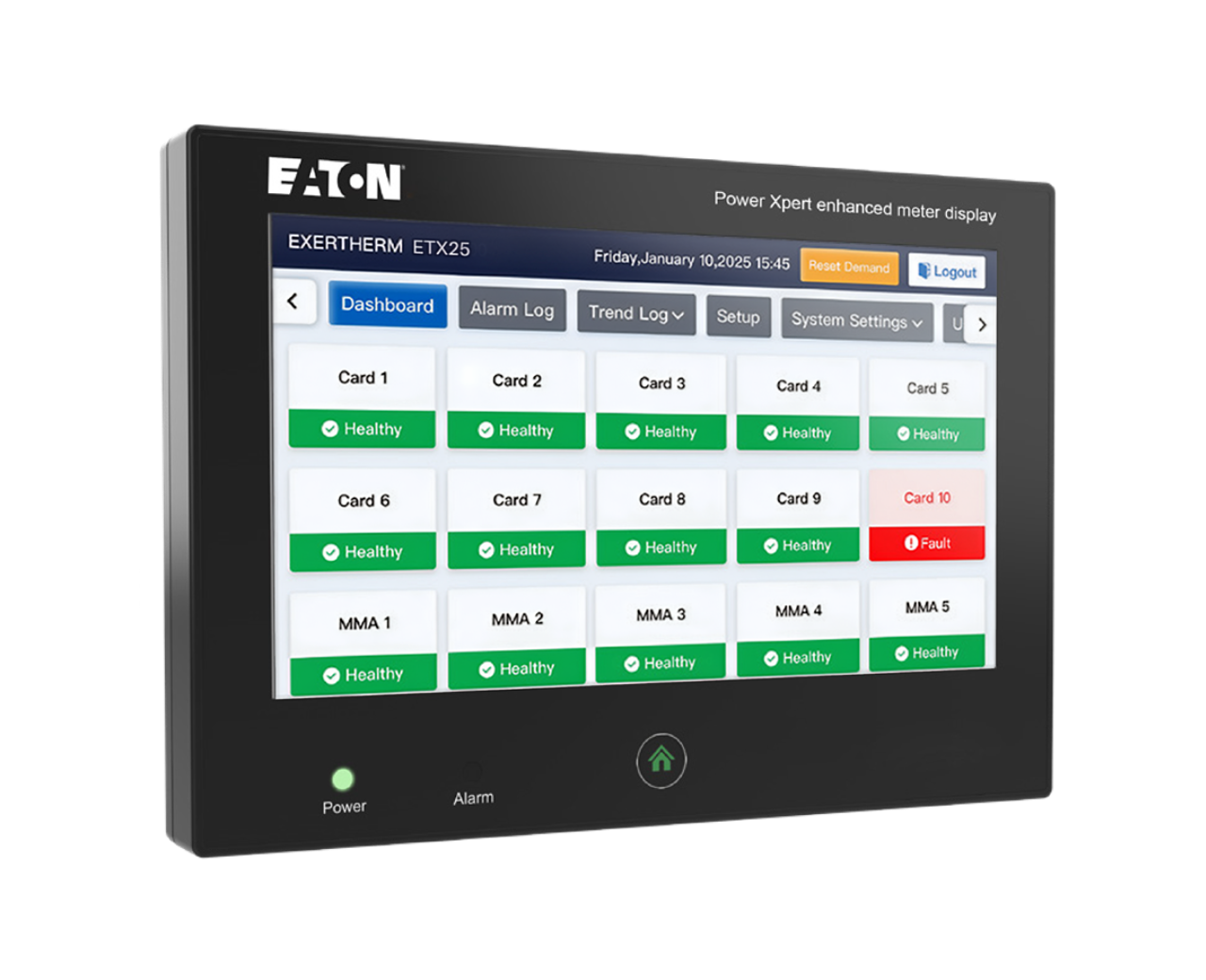

Exertherm Thermal Xpert 25

Panel mounted HMI for local status

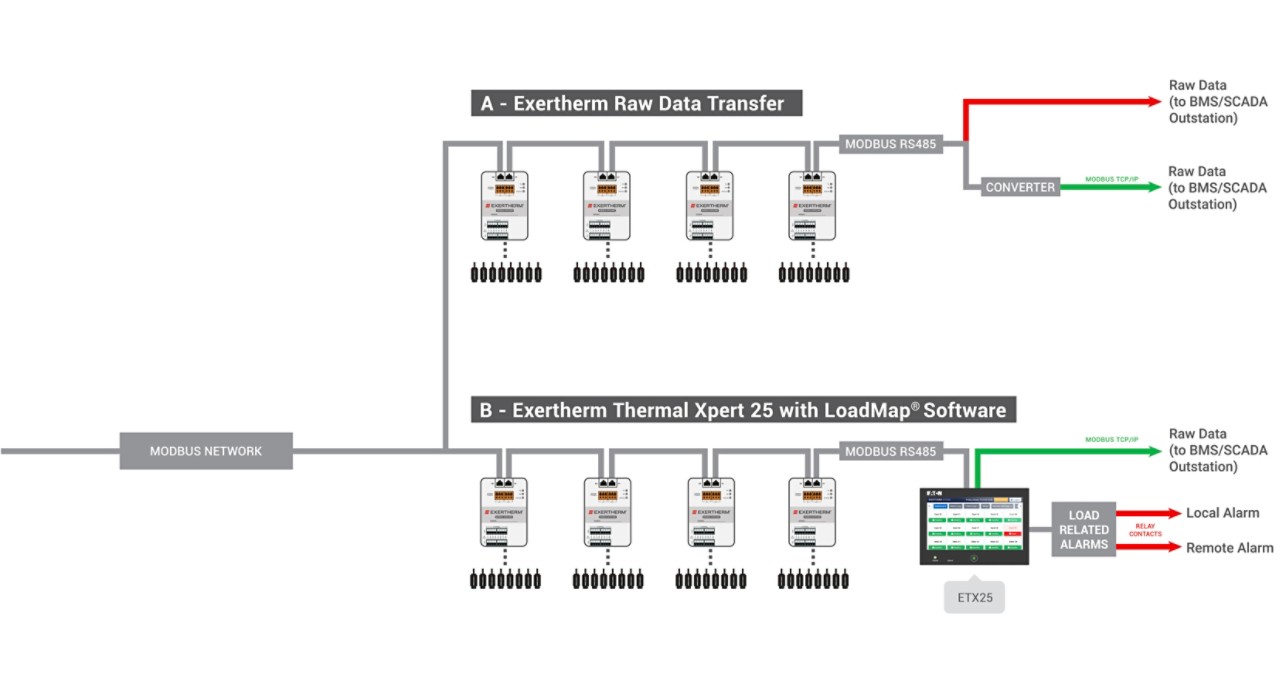

Connectivity between CTM sensors and host platform

There are two connectivity options available:

Why choose Eaton Exertherm CTM for MV switchgear monitoring?

Eaton's CTM solution provides an OEM-neutral approach to MV switchgear monitoring, delivering continuous visibility across the critical connections where thermal faults most commonly develop.

Suitable for both retrofit and new-build applications. It provides real-time insight into asset condition, enabling earlier fault detection, more informed maintenance planning, and safer maintenance practices through reduced interaction with energized equipment.

Need more info? Let's talk

Get in touch to find out more about MV switchgear by filling in the form. One of the team will reach out to learn more about your requirements as soon as we can.
