Decorative

Pello - Decorative suspended LED pendant ceiling light

Pello is the latest generation decorative pendant luminaire. It combines efficiency with a minimalist design, providing a modern architectural solution in suspended applications for both ambient and accent lighting.

The precision spun aluminum housing provides a high-end finish, whilst Pello's excellent light transmission creates lighting characteristics that can be used in many applications to positively impact the built environment.

产品咨询
Aesthetics
Simple and visually striking
Bespoke options available
RAL 9016 white housing as standard
Regulations
High efficacies of up to 123 Llm/cW

Extended performance and discrete styling

With two lumen options, dimming and emergency functions, the performance of the Pello can be customized to your needs.  In all options the luminaire control gear is housed internally, eliminating any obtrusive remote housings and ensuring that the look and feel of the space is not compromised.

One light, one fixing, one flexible solution

The integrated emergency variant provides a 3-hour backup all within the same sleek, modern profile. Combining efficiency with a truly versatile fitting, Pello is the ideal luminaire to positively impact a buildings appearance and functionality.

Eaton’s 5 year extended warranty comes as standard, for quality you can trust

When purchasing Eaton lighting products, you are safe in the knowledge that you are supported by our simple, reliable warranty with no hidden caveats. We support: 24/7 operation with no annual hours usage restrictions, 12 months parts and labour with an additional 48 months on parts and no need to register your product.

Cover option for a neat appearance in applications with tall ceilings

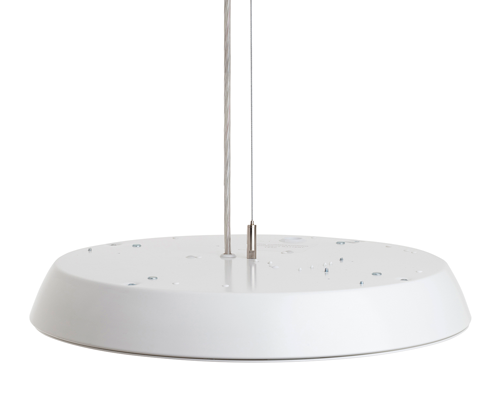

Without cover plate

With cover plate

View the rest of Eaton's range of decorative, surface, suspended and panel luminaires

相关产品

From luminaire modifications to standard products, trust Eaton for your bespoke solution

With Eaton’s internal expertise, we can help meet the challenging demands of modern commercial buildings with our bespoke design service. Our accredited in-house testing facilities and our team of thermal, electrical and mechanical engineering experts are ready to support with each product design for your unique solution.
Contact Us
规格

Part numbers

Variant  Cat No  Lumen Output  Wattage (W)  Llm/ cW  Weight (kg)  Emergency Cat No  Weight (kg)
Standard 4000  PELWTO44K8Z  4312 35 123.2 3 ELPELWTO44K8Z  3.3
Standard 8000  PELWTO84K8Z  7847 74 106.0 3 ELPELWTO84K8Z  3.3
Bespoke colour options are available, subject to terms and conditions - please contact LightingSalesUK@Eaton.com for a quotation
For DALI Dimming option replace character Z with DD , e.g. PELWTO44K8Z becomes PELWTO44K8DD
Llm/cW = luminaire lumens per circuit watt

Accessories
Description  Cat No
Aesthetic back cover plate accessory  PELBP
3 point suspension kit  PEL3P

Technical specification

Light Engine and Control Gear Options • High output, high efficacy LED chip set optimised for decorative pendant option.
• Energy efficient fixed output control gear as standard
• Dimming option - DALI
Materials • Body - Spun aluminium painted housing
• Diffuser - Acrylic, UV stabilised
Installation Notes • Suitable for ceiling mounting using the defined suspension kits
• Supplied with diffuser and light engines pre-fitted, no need to remove during installation
• Supplied with 3m flexible cable and suspension cord
Specification To specify state: Suspended aesthetic LED pendent, spun aluminium painted housing, with UV stabilised diffuser as Eaton’s Pello part number _________
下载链接
  • Lighting design files for Eaton's decorative, suspended ceiling light.
    (ZIP 2 KB , 13/06/2018)
  • Sales and technical information for Eaton's suspended, decorative ceiling light.
    (PDF 454 KB , 13/06/2018)
